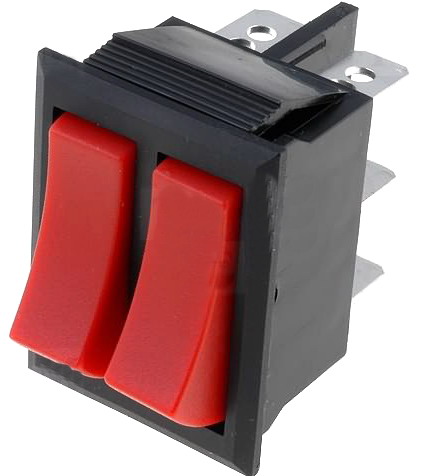

Intrerupator basculant, dublu, ON-OFF+/ON-OFF, 10A, SPST, orificiu montare 30.2x22.2mm, R1390PBB01BRRN2

R1390PBB01BRRN2 ROCKER; ON-OFF + ON-OFF; Config.pini: SPST; Sarcina AC:10A/250V RoHS
 Producator: SCI Simbol original: R13-90P-BB-01-BRR-N-2

Tip intrerupator ROCKER

 Mod comutare ON-OFF+ ON-OFF
 Configuratie pini SPST
 Sarcina admisibila contacte AC, la sarcina rezistiva) 10 A / 250 V
 Culoare buton rosu
 Rezistenta contact max. 50mΩ
 Culoare carcasa neagra

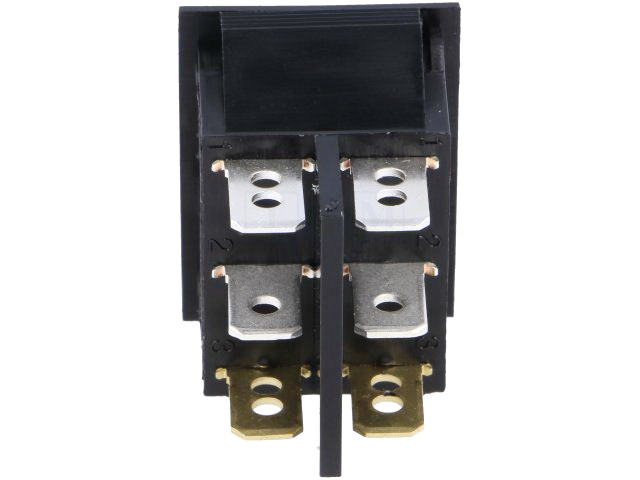

 Terminale conectori 6,3 x 0,8 mm
 Clasa inflamabilitate UL94V-2
 Grosime panou max 3mm
 Dimensiuni orificiu montare 30.2 x 22.2mm

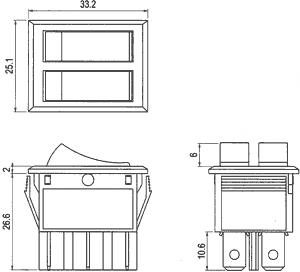

 Dimensiuni carcasa 32 x 22 x 26.6mm

SPST : single pole single throw
SPDT : single pole double throw
DPST : double pole single throw
DPDT : double pole double throw


For multipole switches:
3P : 3 pole
   3PST means 3 pole single throw
4P : 4 pole
   4PDT means 4 pole double throw


Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"


For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
