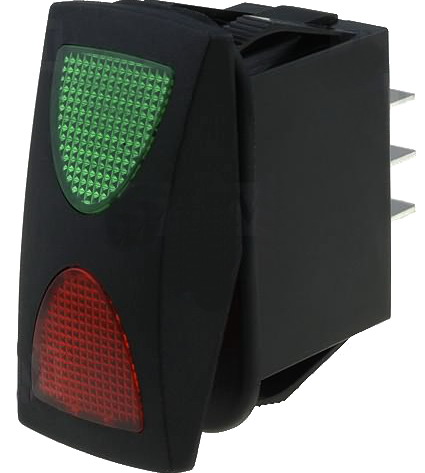

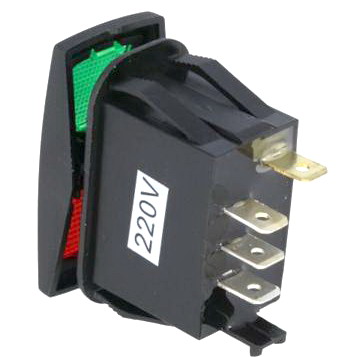

R13292D201BBGR2 ROCKER; ON-OFF-ON; Config.pini: SPDT; Sarcina AC:10A/250V; 50mΩ  RoHS
Producator: SCI

Simbol original: R13-292D3-0-1BBGR-22GR0300-5

Tip intrerupator ROCKER

 Mod comutare ON-OFF-ON
 Configuratie pini SPDT
 Sarcina admisibila contacte AC
la sarcina rezistiva) 10 A / 250 V
 Culoare buton negru
 Rezistenta contact max. 50mΩ
 Culoare carcasa neagra
 Terminale conectori 6,3 x 0,8 mm
 Clasa inflamabilitate UL94V-2
 Iluminare LED
 Grosime panou max 3mm

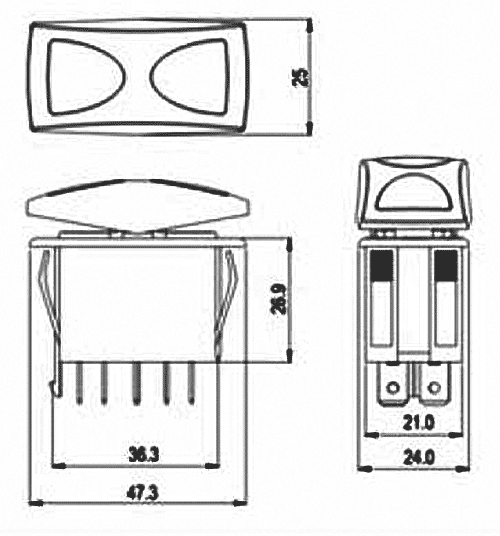

 Dimensiuni orificiu montare 47.3 x 25 x 0.8mm
Ip 66
 Culoare lumina de fundal rosu/verde

SPST : single pole single throw
SPDT : single pole double throw
DPST : double pole single throw
DPDT : double pole double throw


For multipole switches:
3P : 3 pole
   3PST means 3 pole single throw
4P : 4 pole
   4PDT means 4 pole double throw


Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"


For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
