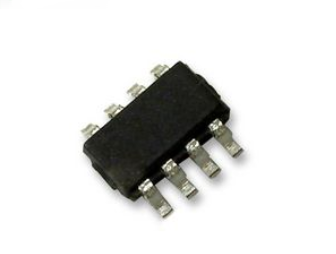

INA219AIDCNR, Current Sense Amplifier, 1 Amplifier, SOT-23, 8 Pins, TEXAS INSTRUMENTS

Denumire Produs: INA219AIDCNR

COD: 74805

Preț orientativ: 29,94 RON

Manufacturer: Texas Instruments
Description: Current & Power Monitors & Regulators 0-Drift Bi-Dir Crnt Pwr Monitor
Product: Current and Power Monitors
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 3 V
Operating Supply Current: 1 mA
Operating Temperature Range: - 40 C to + 85 C
Mounting Style: SMD/SMT
Package / Case: SOT-23-8
Packaging: Reel
Accuracy: 0.5 %
Bandwidth: 11 kHz
Brand: Texas Instruments
Description/Function: ZERO-DRIFT, BI-DIRECTIONAL CURRENT/POWER MONITOR IN SOT23
Development Kit: INA219EVM
Features: Bidirectional, Low-side Capable, I2C
Gain: Programmable
Input Voltage Range: 3 V to 5.5 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Operating Supply Voltage: 3 V to 5.5 V
Sensing Method: High Side
Series: INA219
Vos - Input Offset Voltage: 100 uV
Part # Aliases: HPA00900AIDCNR

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
