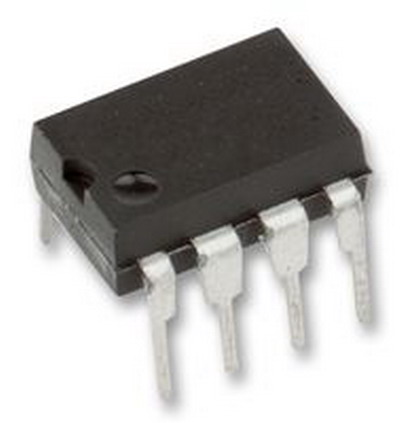

The INA106KP is a precision fixed-gain Differential Amplifier consisting of a precision op amp and on-chip metal film resistors. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over-temperature. The differential amplifier is the foundation of many commonly used circuits. The INA106 provides this precision circuit function without using an expensive resistor network.



    Easy to use

    ±0.025% Maximum accurate gain

    86dB Minimum high common-mode rejection

    0.001% Maximum nonlinearity



Aplicaţii



Test & Measurement







Manufacturer: Texas Instruments

Product Category: Differential Amplifiers

RoHS:  Details

Series: INA106

Number of Channels: 1 Channel

SR - Slew Rate: 3 V/us

CMRR - Common Mode Rejection Ratio: 86 dB

Vos - Input Offset Voltage: 100 uV

Supply Voltage - Max: 36 V

Supply Voltage - Min: 10 V

Operating Supply Current: 1.5 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Mounting Style: Through Hole

Package/Case: PDIP-8

Packaging: Tube

Amplifier Type: Differential

Product: Differential Amplifiers

Supply Type: Dual

Brand: Texas Instruments

Input Voltage Range - Max: Positive Rail - 4 V

3 dB Bandwidth: 5000 kHz

Dual Supply Voltage: +/- 15 V

Gain Error: 0.025 %

Gain V/V: 10 V/V

Maximum Dual Supply Voltage: +/- 18 V

Minimum Dual Supply Voltage: +/- 5 V

Operating Supply Voltage: 10 V to 36 V



Vcm - Common Mode Voltage: - 11 V
