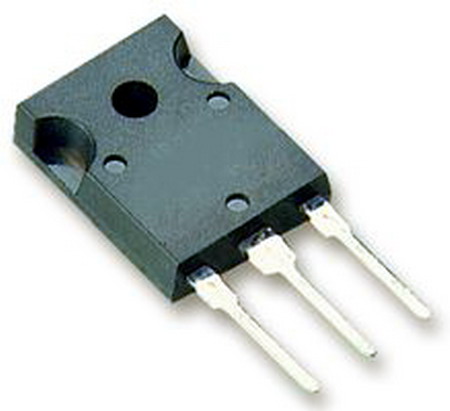

Componente electronice activeTranzistoareTranzistoare IGBTIGW50N65F, IGBT, super fast, 600V, 80A, 305W, TO247, INFINEON
Componente electronice activeTranzistoareTranzistoare IGBTIGW50N65F, IGBT, super fast, 600V, 80A, 305W, TO247, INFINEON
Product Category: IGBT Transistors
Manufacturer: Infineon
RoHS: RoHS Compliant Details
Configuration: Single
Collector- Emitter Voltage VCEO Max: 650 V
Collector-Emitter Saturation Voltage: 1.9 V
Maximum Gate Emitter Voltage: 20 V
Continuous Collector Current at 25 C: 80 A
Gate-Emitter Leakage Current: 100 nA
Pd - Power Dissipation: 305 W
Mounting Style: Through Hole
Package/Case: TO-247-3
Maximum Operating Temperature: + 175 C
Packaging: Tube
Brand: Infineon Technologies
Continuous Collector Current Ic Max: 56 A
Minimum Operating Temperature: - 40 C
Series: IGW50N65
Part # Aliases: IGW50N65F5 SP000973426
Utilizare: invertor solar, aparate sudura, sursa PFC, TELECOM
