Componente electronice activeTranzistoareTranzistoare IGBTSTGW60V60F, IGBT, very high speed, 80A, 600V, 375W, STMICROELECTRONICS
Componente electronice activeTranzistoareTranzistoare IGBTSTGW60V60F, IGBT, very high speed, 80A, 600V, 375W, STMICROELECTRONICS
Manufacturer: STMicroelectronics
Description: IGBT Transistors 600V 80A Trench Gate 1.8V Vce IGBT
Configuration: Single
Collector- Emitter Voltage VCEO Max: 600 V
Collector-Emitter Saturation Voltage: 2.35 V
Maximum Gate Emitter Voltage: +/- 20 V
Continuous Collector Current at 25 C: 80 A
Power Dissipation: 375 W
Maximum Operating Temperature: + 175 C

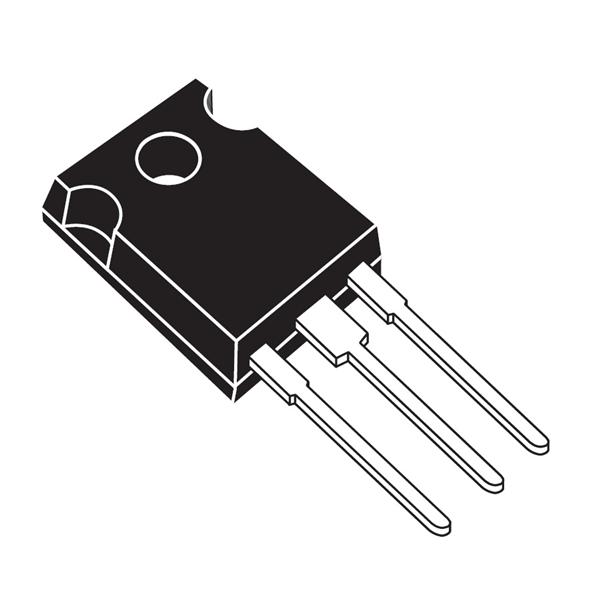

Package / Case: TO-247-3
Packaging: Tube
Continuous Collector Current Ic Max: 60 A
Minimum Operating Temperature: - 55 C
Mounting Style: Through Hole
Utilizare: invertor solar, aparate sudura, sursa PFC, TELECOM
Photovoltaic inverters
• Uninterruptible power supply
• Welding
• Power factor correction
• Very high frequency converters
