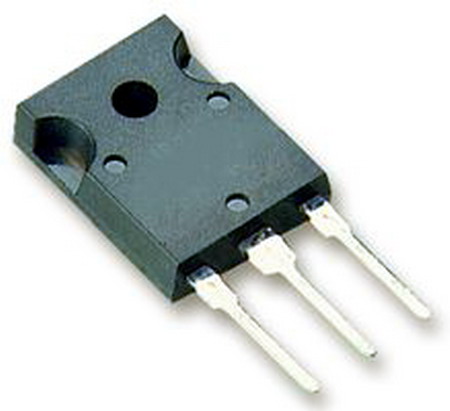

Componente electronice activeTranzistoareTranzistoare IGBTIGW50N60T, IGBT, 90A, 600V, 333W, INFINEON
Componente electronice activeTranzistoareTranzistoare IGBTIGW50N60T, IGBT, 90A, 600V, 333W, INFINEON
Manufacturer: Infineon
Product Category: IGBT Transistors
RoHS: Details
Technology: Si
Package/Case: TO-247-3
Mounting Style: Through Hole
Configuration: Single
Collector- Emitter Voltage VCEO Max: 600 V
Collector-Emitter Saturation Voltage: 1.5 V
Maximum Gate Emitter Voltage: 20 V
Continuous Collector Current at 25 C: 90 A
Pd - Power Dissipation: 333 W
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 175 C
Series: TRENCHSTOP IGBT
Packaging: Tube
Brand: Infineon Technologies
Gate-Emitter Leakage Current: 100 nA
Height: 20.95 mm
Length: 15.9 mm
Product Type: IGBT Transistors
Subcategory: IGBTs
Tradename: TRENCHSTOP
Width: 5.3 mm
Part # Aliases: SP000054926 IGW5N6TXK IGW50N60TFKSA1
Designed for :
- Frequency Converters
- Uninterrupted Power Supply
