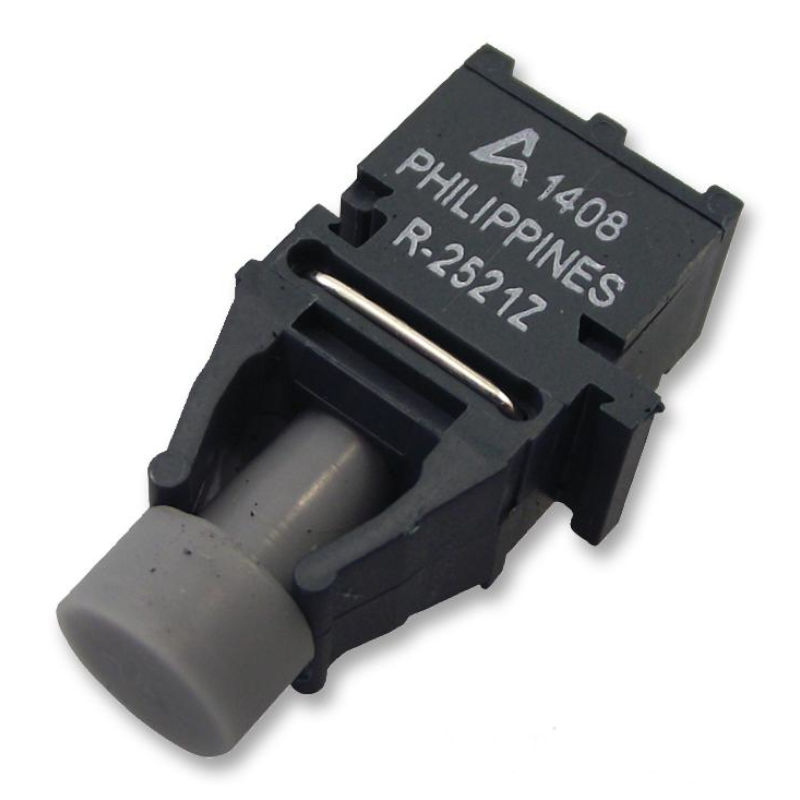

Conectori, socluri, regleteConectori fibra optic, toslinkHFBR-2521Z, receptor, fibra optica, 5Mbaud, BROADCOM
Conectori, socluri, regleteConectori fibra optic, toslinkHFBR-2521Z, receptor, fibra optica, 5Mbaud, BROADCOM
Producator : BROADCOM
Wavelength Typ: 660nm
Data Rate Max: 5Mbaud
Data Transmission Distance: 20m
The HFBR-2521Z from Avago is a 5MBd high performance link receiver for industrial applications. This device includes a monolithic dc coupled digital IC receiver with open collector Schottky output transistor. An internal pull-up resistor is available for use in the receivers. A shield has been integrated into the receiver IC to provide additional localized noise immunity. Receiver is designed for use in high volume/low cost assembly processes such as auto insertion and wave soldering.
Data transmission distance upto 30m at 25°C
Operating temperature range from -40°C to 85°C
Aplicaţii
Fibre Optics, Industrial, Consumer Electronics
