Pagină de start>Componente electronice active>Tranzistoare>Tranzistoare bipolare>FZT491, SI-N, 60V, 1A, SOT223

Mareste

FZT491, SI-N, 60V, 1A, SOT223

Denumire Produs: FZT491

COD: 62702

Preț orientativ: 7,11 RON

522-FZT491TA
Manufacturer Part #: FZT491TA
Manufacturer: Diodes Incorporated
Product Category: Transistors Bipolar - BJT
RoHS: RoHS Compliant Details
Brand: Diodes Incorporated
Configuration: Single
Transistor Polarity: NPN
Collector- Base Voltage VCBO: 80 V
Collector- Emitter Voltage VCEO Max: 60 V
Emitter- Base Voltage VEBO: 5 V
Collector-Emitter Saturation Voltage: 160 mV
Maximum DC Collector Current: 1 A
Gain Bandwidth Product fT: 150 MHz
Maximum Operating Temperature: + 150 C
Mounting Style: SMD/SMT

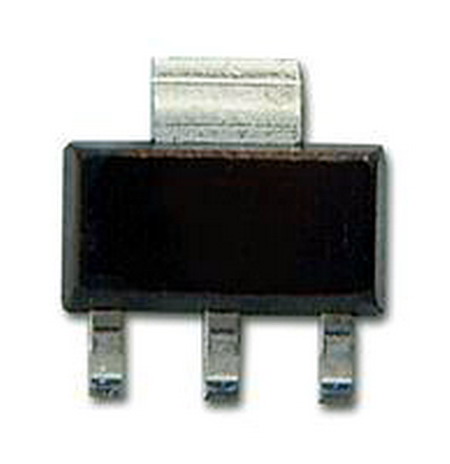

Package / Case: SOT-223
Continuous Collector Current: 1 A
DC Collector/Base Gain hfe Min: 100 at 1 mA at 5 V, 100 at 500 mA at 5 V, 80 at 1 A at 5 V, 30 at 2 A at 5 V
DC Current Gain hFE Max: 100
Maximum Power Dissipation: 2 W
Minimum Operating Temperature: - 55 C
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
