FQA24N60, FAIRCHILD SEMICONDUCTOR

Pagină de start

Componente electronice active

Tranzistoare

Tranzistoare N-MOSFET

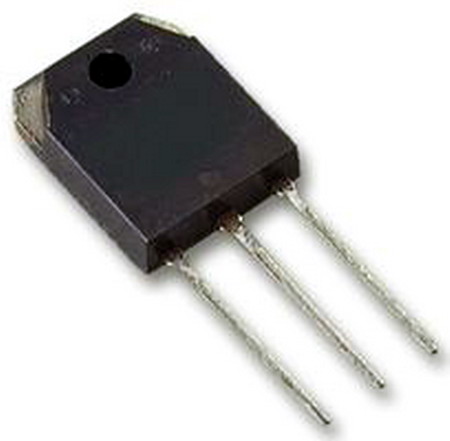

FQA24N60, N-MOSFET, 600V, 24A, TO3P, FAIRCHILD SEMICONDUCTOR

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Furnizor: FAIRCHILD SEMICONDUCTOR
FQA24N60

RoHS : Da
Descriere
MOSFET, N, TO-3P
Transistor Polarity:N Channel
Continuous Drain Current Id:24A
Drain Source Voltage Vds:500V
On Resistance Rds(on):200mohm
Rds(on) Test Voltage Vgs:10V
Threshold Voltage Vgs Typ:5V
Transistor Case Style:TO-3P
No. of Pins:3
Current Id Max:24A
Junction Temperature Tj Max:150C
Junction Temperature Tj Min:-55C
Package / Case:TO-3P
Power Dissipation Pd:290W
Pulse Current Idm:96A
Termination Type:Through Hole
Transistor Type:
Voltage Vds Typ:500V
Voltage Vgs Max:5V
Voltage Vgs Rds on Measurement:10V

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
