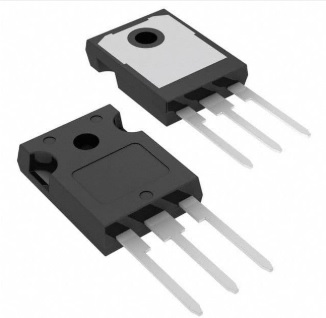

Componente electronice activeTranzistoareTranzistoare IGBTFGH60T65SQD, IGBT, 120A, HIGH SPEED, 650V, 333W, ONSEMI
Componente electronice activeTranzistoareTranzistoare IGBTFGH60T65SQD, IGBT, 120A, HIGH SPEED, 650V, 333W, ONSEMI
GBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 650V
Current - Collector (Ic) (Max) 120A
Current - Collector Pulsed (Icm) 240A
Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 60A
Power - Max 333W
Switching Energy 227µJ (on), 100µJ (off)
Input Type Standard
Gate Charge 79nC
Td (on/off) @ 25°C 20.8ns/102ns
Test Condition 400V, 15A, 4.7Ohm, 15V
Reverse Recovery Time (trr) 34,6ns
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247-3
Base Part Number FGH60
