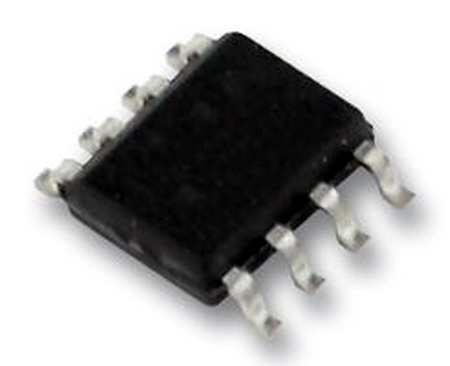

FAIRCHILD SEMICONDUCTOR - FDS8858CZ - MOSFET, DUAL, NP, SMD, SO-8

•
•  MOSFET, DUAL, NP, SMD, SO-8
• Transistor Polarity: N and P Channel
• Continuous Drain Current Id: 8.6A
• Drain Source Voltage Vds: 30V
• On Resistance Rds(on): 17mohm
• Rds(on) Test Voltage Vgs: 10V
• Threshold Voltage Vgs Typ: 1.6V
• Power Dissipation Pd: 2W
• Operating Temperature Range: -55°C to +150°C
• Transistor Case Style: SOIC
• No. of Pins: 8
• Cont Current Id N Channel 2: 8.6A
• Cont Current Id P Channel: 7.3A
• Current Id Max: 8.6A
• No. of Transistors: 2
• On State Resistance N Channel Max: 17mohm
• On State Resistance P Channel Max: 20.5mohm
• Package / Case: SOIC
• Power Dissipation Pd: 2W
• Pulse Current Idm N Channel 2: 20A
• Pulse Current Idm P Channel: 20A
• Termination Type: SMD
• Voltage Vds Typ: 30V
• Voltage Vgs Max: 1.6V
• Voltage Vgs Rds on Measurement: 10V
