Furnizor:
 FAIRCHILD SEMICONDUCTOR

FDN304P

 RoHS :   Da
Descriere

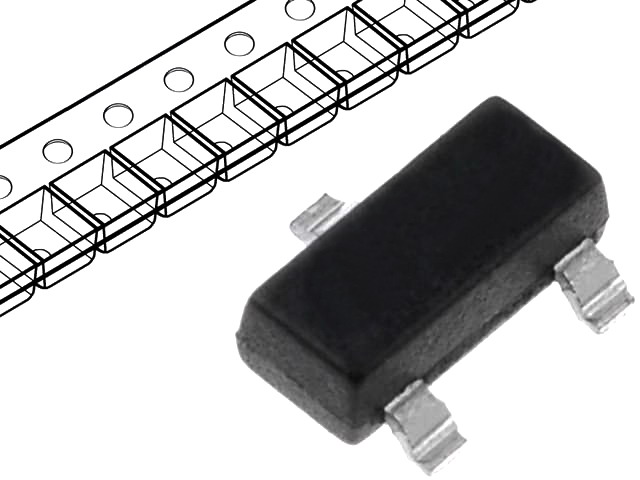

MOSFET, P, SOT-23
 Transistor Polarity:P Channel
 Continuous Drain Current Id:2.4A
 Drain Source Voltage Vds:20V
 On Resistance Rds(on):52mohm
 Rds(on) Test Voltage Vgs:-4.5V
 Threshold Voltage Vgs Typ:-800mV
 Transistor Case Style:SOT-23
 No. of Pins:3
 Current Id Max:2.4A
 Current Temperature:25C
 Device Marking:FDN304P
 External Depth:2.5mm
 External Length / Height:1.12mm
 External Width:3.05mm
 Full Power Rating Temperature:25C
 Package / Case:SOT-23
 Power Dissipation Pd:500mW
 Power Dissipation Pd:500mW
 Pulse Current Idm:10A
 SMD Marking:304P
 Tape Width:8mm
 Termination Type:SMD
 Voltage Vds:20V
 Voltage Vds Typ:-20V
 Voltage Vgs Max:8V
 Voltage Vgs Rds on Measurement:-4.5V
 Voltage Vgs th Max:-1.5V
