FAN7382MX, half-bridge, gate driver, SO8

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

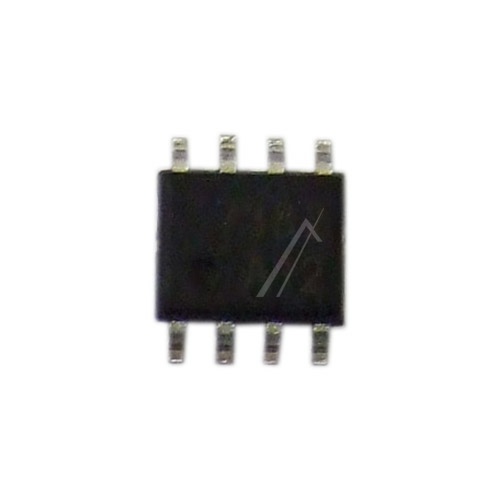

FAN7382M CIRCUIT INTEGRAT SOP8

The FAN7382, a monolithic half-bridge gate driver IC, can drive MOSFETs and IGBTs that operate up to +600V.

No. of Channels: 2Channels

Driver Configuration: Half Bridge

Peak Output Current: 650mA

Power Switch Type: MOSFET

Supply Voltage Min: 10V

Supply Voltage Max: 20V

Driver Case Style: SOP

Input Type: Non-Inverting

No. of Pins: 8Pins

Source Current: 350mA

Input Delay: 170ns

Output Delay: 200ns

Sink Current: 650mA

Operating Temperature Min: -40°C

Operating Temperature Max: 125°C

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
