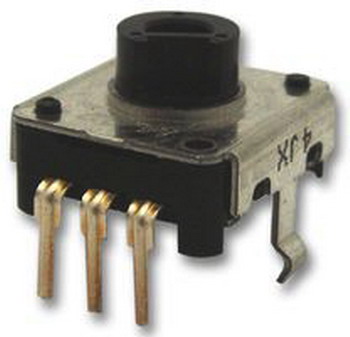

Encoder vertical 24imp, EC12E2420301, ALPS

Denumire Produs: Encoder vertical 24imp EC12E2420301

COD: 66379

Preț orientativ: 22,09 RON

Furnizor: ALPS

EC12E2420301

RoHS :  Da
Descriere
ENCODER, VERTICAL, 24 DET, 24PPR
No. of Channels:2
Connector Type:Pin
Dielectric Strength VAC:50V
Encoder Resolution:24
External Depth:14mm
External Length / Height:5mm
External Width:13.2mm
No. of Detents:24
Operating Temperature Max:+70C
Operating Temperature Range:-10C to +70C
Pulse Output Count:24
Rotation Mechanical Angle:360
Rotational Life Cycles:30000
Series:EC12
Shaft Diameter:6mm
Shaft Length - Metric:2.65mm
Supply Current:0.5mA
Supply Voltage Max:5VDC
Supply Voltage VDC:50V
Temperature Operating Min:-10C
Torque:20mN-m
Type:Incremental Encoder
No. of Pulses Per Revolution:24
