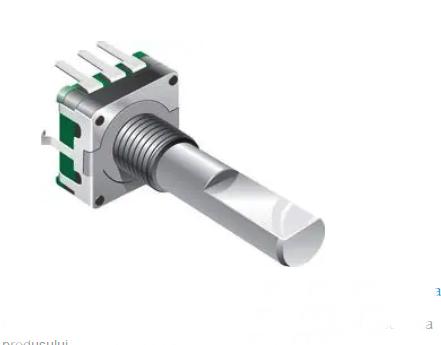

SenzoriSenzori de rotatie, encoderEncoder dual vertical, 2 canale, 24ppr, SWITCH, PEC11R-4215F-S0024, BOURNS
SenzoriSenzori de rotatie, encoderEncoder dual vertical, 2 canale, 24ppr, SWITCH, PEC11R-4215F-S0024, BOURNS
Manufacturer: Bourns
Product Category: Encoders
RoHS: Details
Series: PEC11R
Mounting Style: PCB Mount
Product: Contacting Encoders
Type: Incremental
Resolution: 24 PPR
Technology: Rotary
Number of Detents: 24 Detent
Number of Channels: 2 Channel
Termination Style: PC Pin
Output Type: Quadrature
Shaft Diameter: 6 mm
Shaft Type: D / Flatted
With Switch: Push/Pull Switch
Operating Supply Voltage: 5 VDC
Life: 30000 Cycles
IP Rating: IP44
Packaging: Tray
Accessory Type: -
Brand: Bourns
Bushing Material: Metal
Bushing Size: 7 mm x 5mm
Bushing Thread: M7 x 0.75
