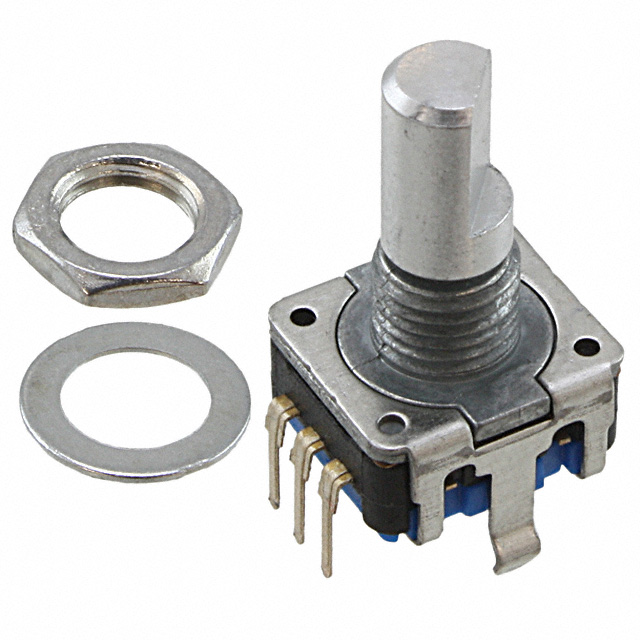

Componente electronice pasivePotentiometrePotentiometre speciale-encodere rotativeEncoder 6mm vertical 15ppr, PEC11L-4220F-S0015
Componente electronice pasivePotentiometrePotentiometre speciale-encodere rotativeEncoder 6mm vertical 15ppr, PEC11L-4220F-S0015
Mounting Style: Panel
Product: Mechanical Encoders
Type: Incremental
Resolution: 15 PPR
Number of Detents: 30
Number of Channels: 2
Termination Style: Through Hole
Output: Quadrature
Shaft Type: Flatted
With Switch: Yes
Supply Voltage: -
Bushing Material: Metal
Bushing Size: 7 mm x 5 mm
Bushing Thread: M7 x 0.75
Operating Temperature Range: - 25 C to + 80 C
Packaging: Bulk
Series: PEC11L
Shaft Diameter: 6 mm
Shaft Length: 20 mm
Size / Dimension: 11 mm
Technology: Rotary
