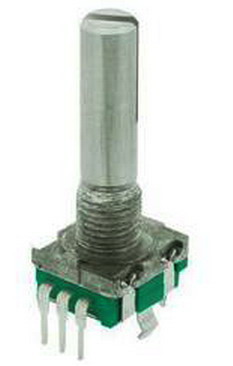

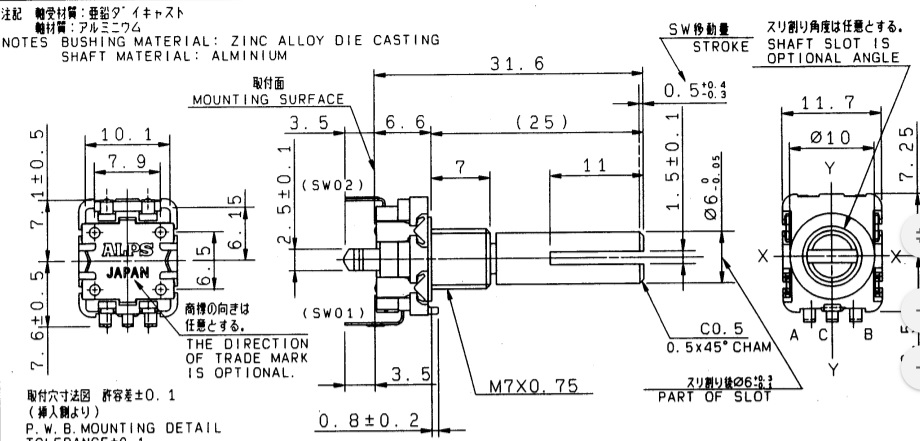

STEC11B03
Descriere: Encoder 11mm ver15imp/30pos Met Shaft 6/25 slot, switch
Producator: ALPS
Features + actuator
Operation type Actuator
Switching angle 360 °
Lighting type none
Switch position 1 x Off/On
Material Metal
Connection Solder pins
Switching voltage 5 Vdc
Switching current (max.) 0.01 A
Min. temperature -30 °C
Max. temperature 70 °C
Axle Ø 6 mm
Electrical lifespan Encoder 15000 Zyklen x 2/Taster Min 25000 Zyklen
Type STEC11B03
Content 1 pc(s)
