Electromagnet de propulsie, solenoid, 24V, ITS-LZ1949D-24

Denumire Produs: ITS-LZ1949D-24

COD: 40117

Preț orientativ: 175,95 RON

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

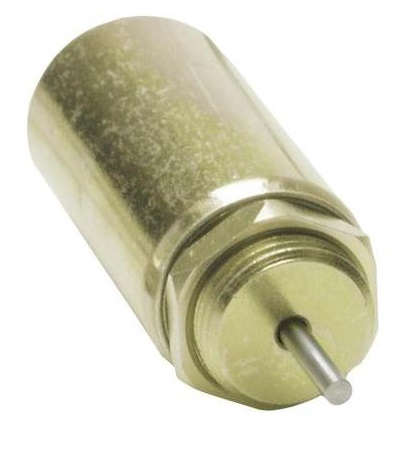

Electromagnet -solenoid Electromagnet -solenoid propulsie, ITS-LZ1949D-24

Cylindrically housing
• with fixing srew
• Stable housing for use in harsh environment
• Available as pull version or push version include recuperating spring
• Min. 200mm connecting lead

Dimensions and Weights

Part Nr. ØxL Weight Solenoid Weight Ancher Screw Thread
ITS-LZ_ [mm] [g] [g]
1335_ 13x35 23 4,9 0,375"-32UNEF-2A
1949_ 19x49 82 20 0,562"-18UNF-2A
2560_ 25x60 178 43 0,75"-16UNF-2A

Coil Data

Part Nr. EDRel EDMax. PMax.
ITS-LZ_ [%] [sec] [W]
1335Z-12 100 ¥ 4
1335D-12 50 50 8
1335Z-24 25 5 16
1335D-24 10 2 40
1949Z-12 100 ¥ 7
1949D-12 50 230 14
1949Z-24 25 25 28
1949D-24 10 6 70
2560Z-12 100 ¥ 10
2560D-12 50 360 20
2560Z-24 25 32 40
2560D-24 10 8 100
EDRel = Duty Cycle, EDMax. = Duty Cycle, Max., PMax. = Capaticy, Max. at 20

-------------------------------------------------------------------

Atentie la alegere putere electromagnet

F ( Newton ) = m x acceleratie

G ( greutate )in N = m ( masa) x g ( acceleratia gravitationala)

acceleratia gravitationala = 9.80665m/s2 = 9.80665 N/Kg

Exemplu

Daca masa unui obiect este de 10 kg spre exemplu, calculam greutatea , ea fiind egala cu

G=m*g ⇒ G=10kg * 10N/Kg⇒ G=100 N (newtoni).

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
