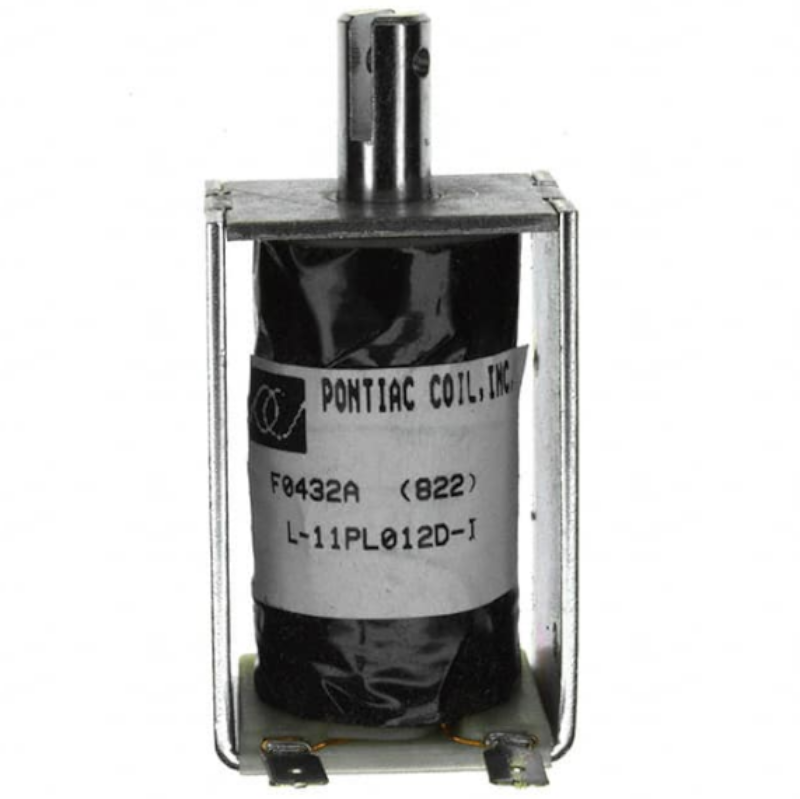

Relee și contactoare, socluriElectromagnetiElectromagnet de atragere, solenoid, 12VDC, 19W, F0432A, PONTIAC COIL
Relee și contactoare, socluriElectromagnetiElectromagnet de atragere, solenoid, 12VDC, 19W, F0432A, PONTIAC COIL
Producător : PONTIAC COIL
Denumire alternativă : L-11PL012D-I
Tip motor : DC
Subtip motor : solenoid
Tensiune alimentare : 12V DC
Curent de lucru : 1.6A
Lungime extensie : 19.05mm
Dimensiuni : 37.5x20.57x30.23 mm
Informaţii : Produsul nu este un dispozitiv de lucru ci doar un component
anufacturer Pontiac Coil Inc.
Series L-11
Packaging Bulk
Part Status Active
Technology Electromechanical
Type Open Frame (Pull)
Duty Cycle Intermittent
Voltage - Rated 12VDC
Stroke Length 0.750" (19.05mm)
Power (Watts) 19W
DC Resistance (DCR) 7.6Ohm
Bushing Thread -
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)

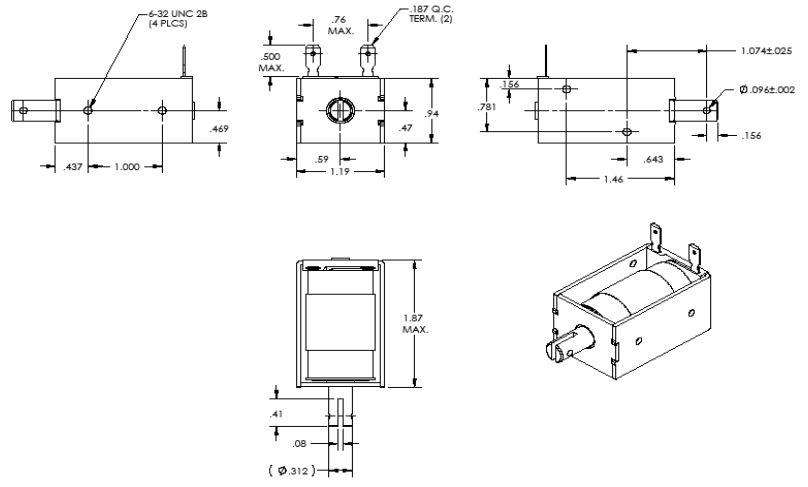

Size / Dimension 1.870" L x 0.940" W x 1.190" H (47.50mm x 20.57mm x 30.23mm)
Diameter - Shaft 0.312" (7.93mm)
Shaft Detail Clevis
