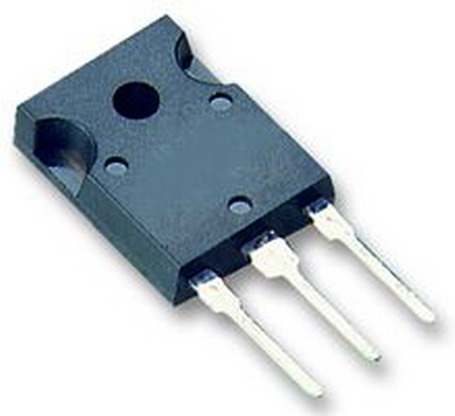

DSA90C200HB, Dioda, Schottky, dubla, 2x45A, 200V, CC, TO247

Denumire Produs: DSA90C200HB Dioda Schottky dubla 2x45A/200V CC

COD: 53329

Preț orientativ: 65,89 RON

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Furnizor: IXYS SEMICONDUCTOR

- DIODE, SCHOTTKY, TO-247AD
- Diode Configuration: Dual Common Cathode
- Diode Type: Schottky
- Repetitive Reverse Voltage Vrrm Max: 200V
- Forward Current If(AV): 45A
- Forward Voltage VF Max: 860mV
- Forward Surge Current Ifsm Max: 450A
- Operating Temperature Range: -55C to +175C
- Diode Case Style: TO-247AD
- No. of Pins: 3
- Current Ifsm: 450A
- Current Ir Max: 1.8mA
- Forward Voltage: 860mV
- Junction Temperature Tj Max: 175C
- Package / Case: TO-247AD
- Power Dissipation Ptot Max: 275W
- Termination Type: Through Hole
~

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
