Optoelectronice, LED, LCD, laserDisplay led, LCD, TFT, OLEDDisplay LCDDisplay LCD; 20x2; negru-galben/verde, VA Negative; 146x43x10mm; MC22008B6W-SPR-V2, MIDAS
Optoelectronice, LED, LCD, laserDisplay led, LCD, TFT, OLEDDisplay LCDDisplay LCD; 20x2; negru-galben/verde, VA Negative; 146x43x10mm; MC22008B6W-SPR-V2, MIDAS

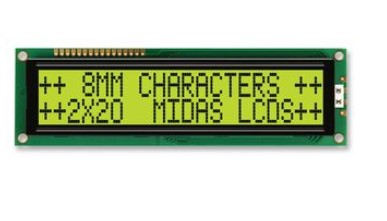

The MC22008B6W-SPR-V2 from Midas is a chip on board LCD alphanumeric module. The overall size of module is 146mm x 43mm x 10mm (W x H x D), character size is 4.84mm x 9.22mm (W x H), character pitch is 1.16mm x 0.53mm (W x H).
Typical input voltage is 5V
Supply current is 1.4mA at Vdd = 5V
20 character number per line & 2 character line
Character height is 8mm
Yellow/green reflective STN
6 "o" clock viewing direction
SPLC780D controller
Operating temperature range from -20°C to 70°C
5V logic supply, standard parallel interface
Display duty 1/16, Driving bias 1/5
No backlight
Preferred view angle - 6 o'clock
-20 to +70°C wide operating temperature range
16 way through hole SIL (top, left) connection, 2.54mm pitch
