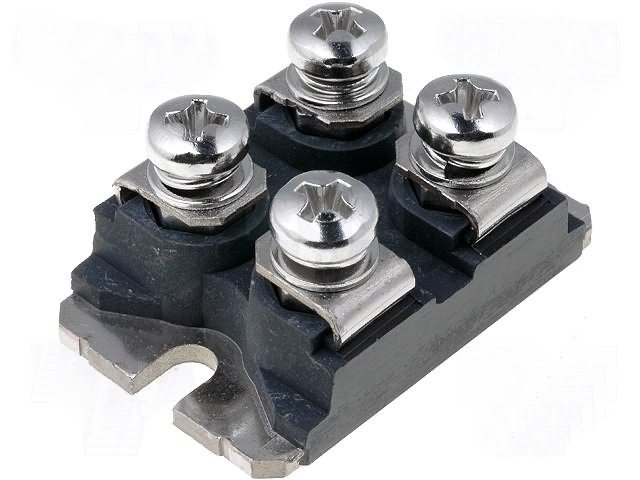

Dioda dubla rapida, 2x61A, 600V, DSEP2X61-06A, IXYS

Furnizor:   IXYS SEMICONDUCTOR

DSEP2X61-06A

RoHS :  Da
Descriere
DIODE, FAST, 120A, SOT-227B
Diode Configuration:2 Independent
Diode Type:FRED
Repetitive Reverse Voltage Vrrm Max:600V
Av Rectified Forward Current IF:60A
Forward Voltage VF Max:1.48V
Reverse Recovery Time trr Max:35ns
Forward Surge Current Ifsm Max:600A
Operating Temperature Range:-40C to +150C
Diode Case Style:SOT-227B
No. of Pins:4
Case Temperature Tc @ If:65C
Current If @ Vf:60A
Forward Current If(AV):60A
Package / Case:SOT-227B
Pin Configuration:Dual
Termination Type:Screw
Time on for IFSM:10ms
Forward Voltage:1.48V
Junction to Case Thermal Resistance A:0.85C/W
Module Configuration:Dual
No. of Phases:1
Typ Reverse Recovery Time, trr:35ns
