Producător : M5STACK
- Output: 0~3.3V
- Software Development Platform: Arduino, UIFlow(Blockly, Python)
-

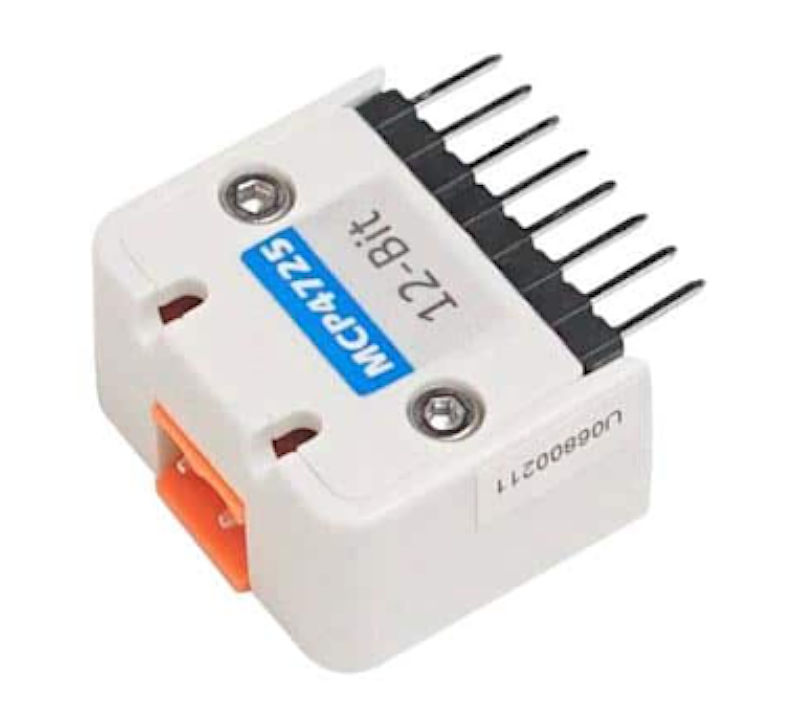

MCP4725
- 12-BitResolution
- External A0 Address Pin
- NormalorPower-DownMode
- Fast Settling Time of 6 μs (typical)
- ExternalVoltageReference(VDD)
- Rail-to-RailOutput
- LowPowerConsumption
- Single-SupplyOperation:2.7V to 5.5V
- I2C Interface: address 0x60
- ExtendedTemperatureRange:-40°Cto+125°C

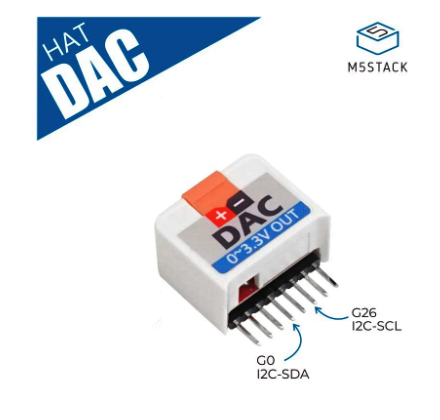

DAC HAT is also a type of C-HAT specifically design for M5StickC controller. Same as DAC unit, this is a voltage output DAC converter for stickc. It can generate a voltage of 0~3.3V.
Packed with a DAC converter chip MCP4725, which is low-power, high accuracy, single-channel, 12-bit buffered voltage output Digital-to-Analog Converter (DAC) with a non-volatile memory (EEPROM). Its on-board precision output amplifier allows it to achieve rail-to-rail analog output swing.
The DAC input and configuration data can be programmed to the non-volatile memory (EEPROM) by the user using the I2C interface command. I2C address: 0x60
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
