Conector tata termocuplu K, mini, IM-K-M, LABFACILITY

Denumire Produs: IM-K-M, LABFACILITY

COD: 85533

Preț orientativ: 61,64 RON

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

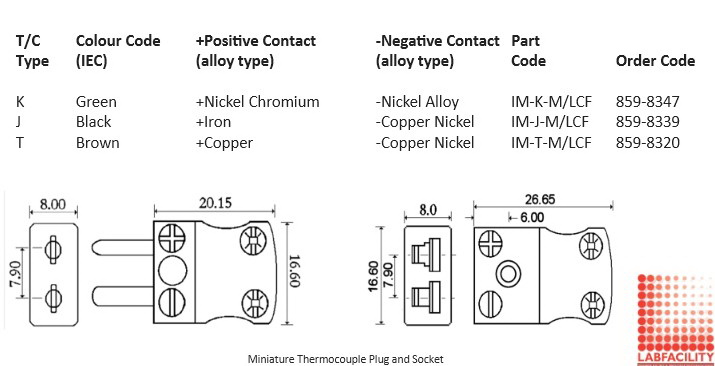

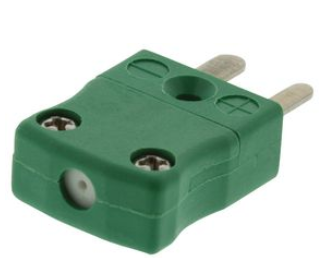

LABFACILITY IM-K-M (IEC) PLUG, MINI, T/C TYPE K

The IM-K-M (IEC) from Labfacility is a miniature thermocouple connector with flat pins to suit thermocouple type. Ideal for general purpose use.

Maximum continuous operating temperature of 220°C

Colour coded with green in accordance with IEC specification

Type K contacts are made from true thermocouple alloys

Contacts are polarized by means of unequally sized pins to ensure correct connection

Connecter will accept thermocouple cable up to 4mm in diameter

Cable clamp available for securing cable to plugs

Aplicaţii

Power Management, Industrial

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
