Conector pcb DG300-5.0-3P12
Producator: DEGSON ELECTRONICS

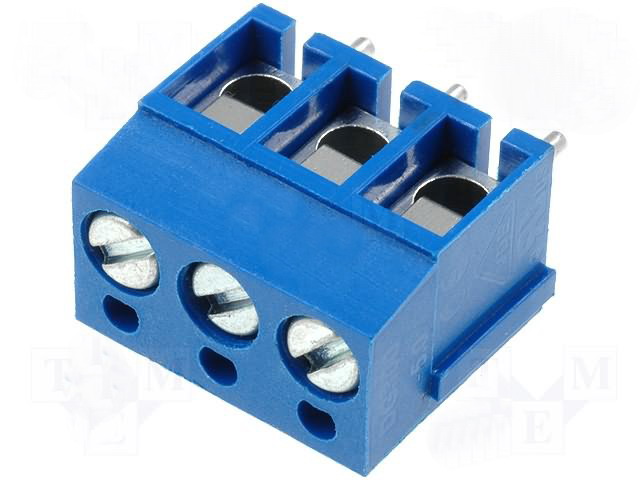

Regleta de conexiuni dreapta pitch 5,0mm 3p albastru
PCB mounting straight terminal blocks, pitch 5,0 mm.
Rated voltage : 250 V
Rated current : 10 A

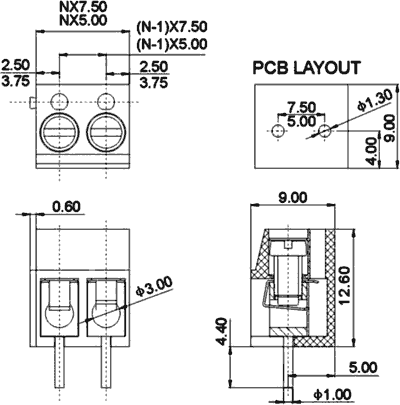

Height x depth : 12,5 x 9,0 mm
Contacts material : tinned brass
Body material : PBT (UL94V-0)
Test voltage : 1500 V AC/1 min.
Cable cross-section : max 2,5 mm2
Operating temperature : -30C to +120C
Soldering : 250C / 5 s. max
Stripped wire length : 4,5...5 mm
The blocks can be interlocked to build larger units.
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
