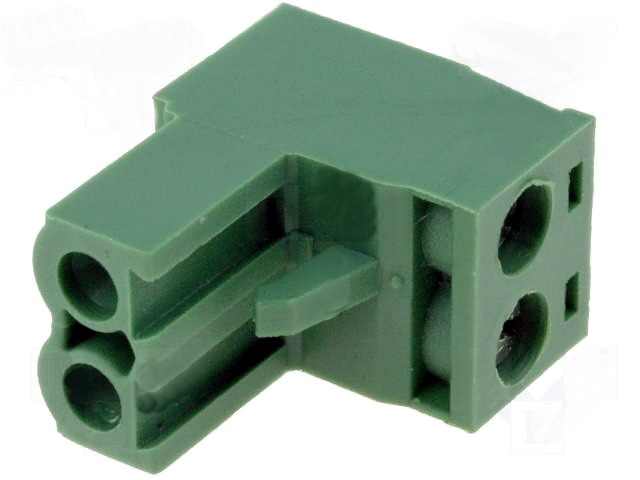

Conector mama TBW-5-2P/GN

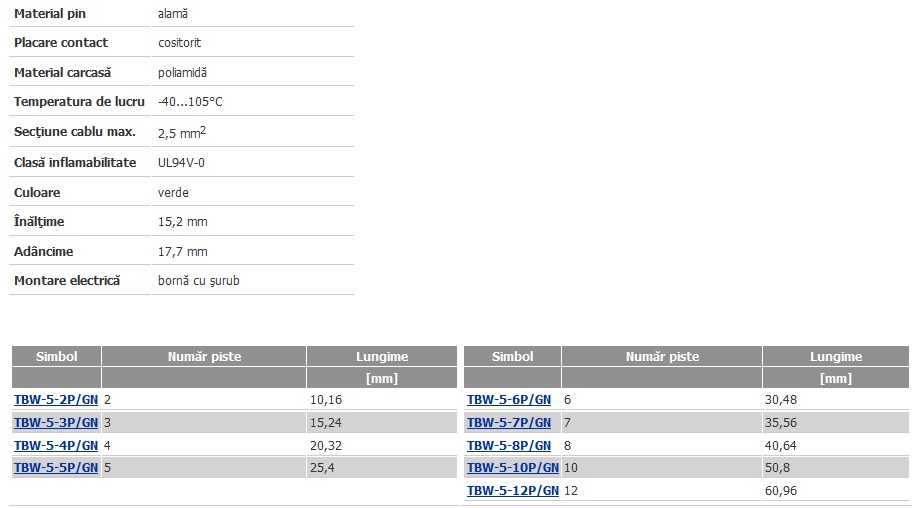

Plugs with terminal block, pitch 5,08 mm.
Rated voltage : 300 V
Rated current : 15 A

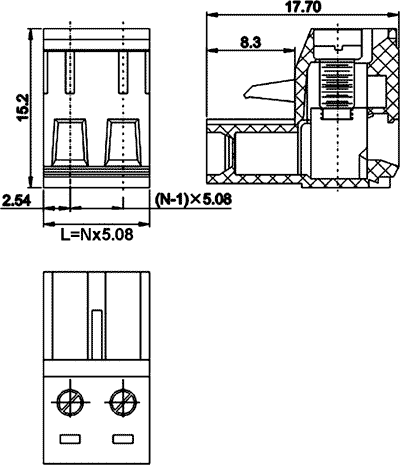

Height x depth : 15,2 x 17,7 mm
Contacts material : tinned brass
Body material : PA 66 (UL94V-0)
Test voltage : 1500 V AC / 1 min.
Cable cross-section : max 2,5 mm2
Operating temperature : -40C to +105C
Soldering : 250C / 5 s. max
Stripped wire length : 7...8 mm

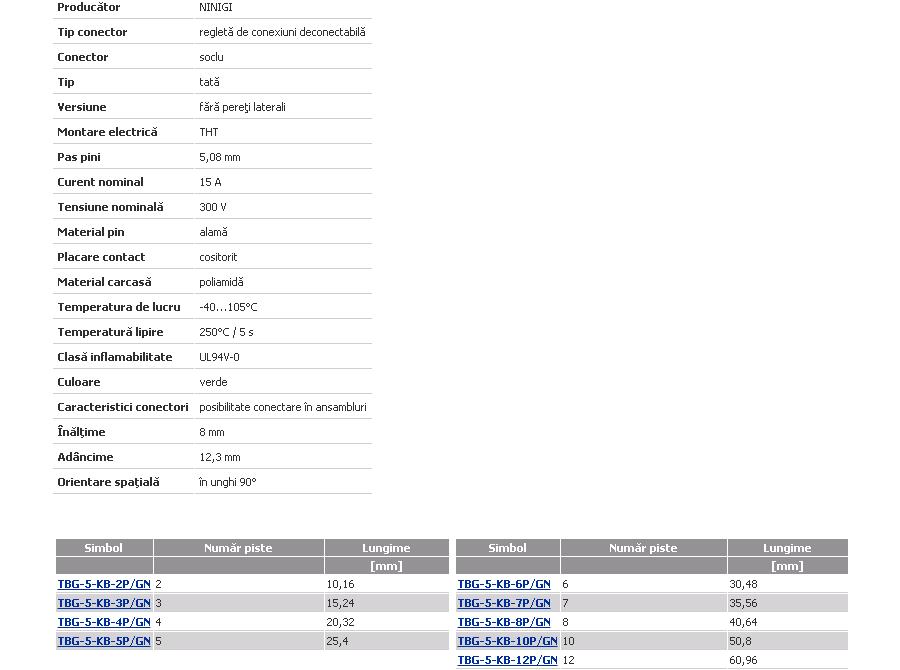

Conector tata corespunzator :
http://www.adelaida.ro/product_info.php?products_id=8684
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
