Conectori, socluri, regleteConectori pentru cablaj, reglete, bareteConector dreptunghiular, 2 pini, 250V, 10A, 2.5mm2, pas 5mm, 3611-02K01, LUMBERG
Conectori, socluri, regleteConectori pentru cablaj, reglete, bareteConector dreptunghiular, 2 pini, 250V, 10A, 2.5mm2, pas 5mm, 3611-02K01, LUMBERG
Producător : LUMBERG
Montare electrică : bornă cu şurub
Tensiune nominală : 250V
Număr piste : 1
Număr terminale : 2
Pitch : 5mm
Montare mecanică : pe cablu, pt. montare pe panou, orificii de fixare
Temperatura de lucru : max. 125°C

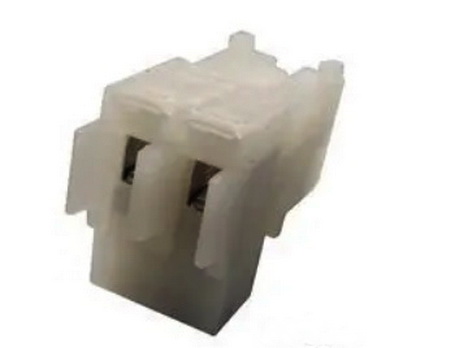

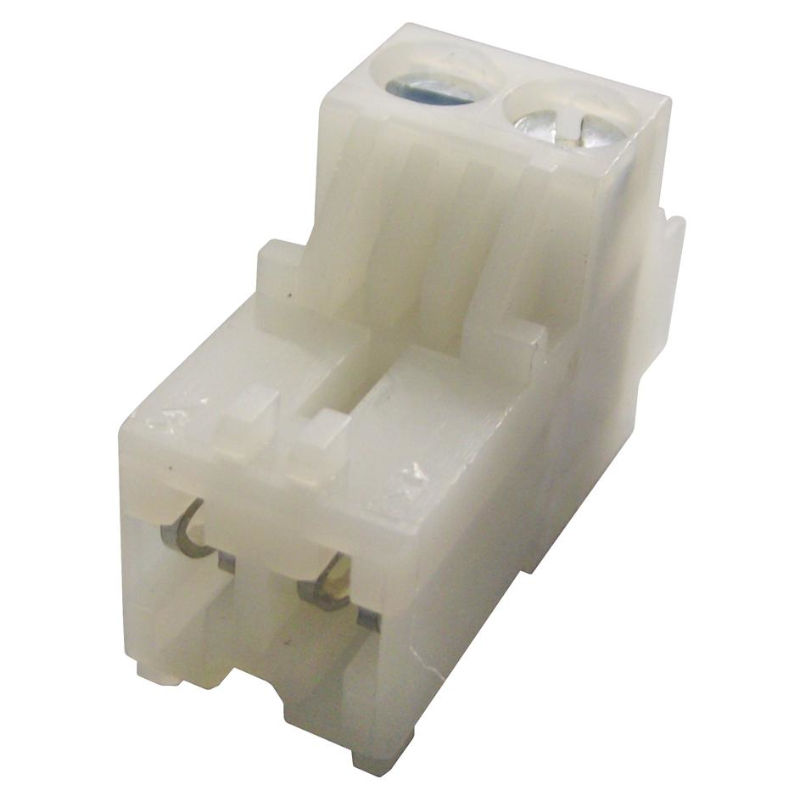

The 3611 02 K01 is a 2-pole Wire-to-board Connector, RAST 5 series, indirect mating with screw terminal. Lift clamp with protection against misplacing, interior locking and consecutive placement without loss of pitch. UL94V-2 rated polyamide insulating body, tin-plated contacts. Suitable for us with 3618, 361899, 361899-1, 361899-2, 361899-3, 3618-1, 3618-2, 3618-3, 3641, 364197, 3642, 3643, 3644, 3645, 3647, 3648, 3649, 3671, 367199, 3672, 367299, 3673, 367399, 3674, 367499, 3676, 3677, 3678, 3679, 3680, 3683 tab headers.
4.0mm² Solid wire
2.5mm² Stranded wire
2.5mm² Stranded wire with ferrule
<=5mR Contact resistance
10A Current rating
250VAC Voltage rating
>=2.6mm Creepage distance
>=2.6mm Clearance
>10GR Insulation resistance
