Conectori, socluri, regleteConectori industrialiConector circular, 8 pini, mama, IP68, PX0410/08S/6065
Furnizor: BULGIN
PX0410/08S/6065
RoHS : Da

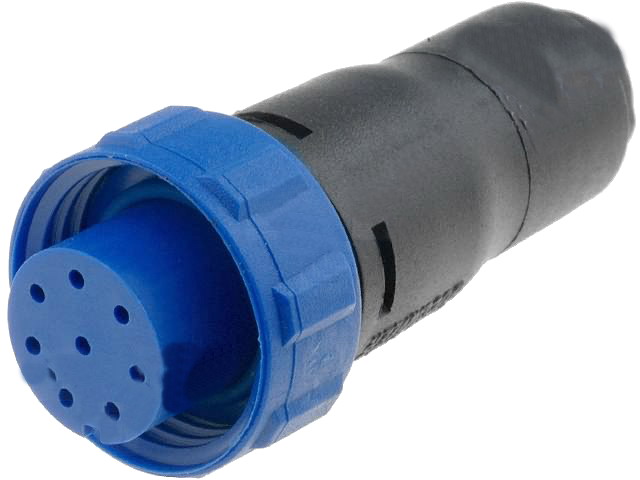

Descriere
SOCKET, FREE, 8WAY
Connector Type:Circular Industrial
Series:Micro Buccaneer
Connector Body Material:Nylon
Gender:Receptacle
Contact Gender:Socket
Connector Mounting:Cable
No. of Contacts:8
Contact Material:Copper
Contact Plating:Gold
Approval Bodies:UL, CSA, VDE
Cable Diameter Max:6.5mm
Cable Diameter Min:6.0mm
Connector Mounting Orientation:Cable
Connector Type:Circular
Contact Material:Copper Alloy
Contact Plating:Gold
Contact Resistance:5mohm
Contact Type:Socket
Current Rating:5A
Flammability Rating:UL94V-0
IP/NEMA Rating:IP68
Insulation Resistance:10Mohm
Material:Polyamide
Mounting Type:Cable
No. of Poles:8
No. of Ways:8
O Ring Material:Nitrile
Operating Temperature Max:80C
Operating Temperature Min:-40C
Voltage Rating VAC:125V
Wire Size AWG Max:22AWG
Wire Size AWG Min:26AWG
Working Voltage:125V
nu include pini
Set etansare
http://www.adelaida.ro/product_info.php?products_id=5813
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
