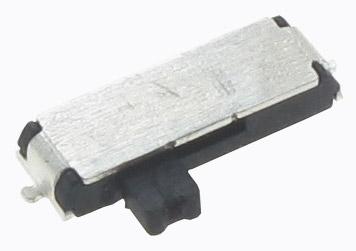

Comutatoare, întrerupătoare, basculanteComutatoare rotative, miniatura, decadice,specialeComutator translatie smd, ON-(OFF), SPDT, JSX08001SAQNL, C&K COMPONENTS
Comutatoare, întrerupătoare, basculanteComutatoare rotative, miniatura, decadice,specialeComutator translatie smd, ON-(OFF), SPDT, JSX08001SAQNL, C&K COMPONENTS
Manufacturer: C&K Components
RoHS: Details
Contact Form: SPDT
Switch Function: Momentary
Actuator: Extended, Side
Mounting Style: SMD/SMT
Contact Plating: Silver
Illumination: Non-Illuminated
Contact Material: Berylium Copper
Current Rating: 10 mA
Flammability Rating: UL 94 V-2
Mounting Angle: Horizontal
Operating Temperature Range: - 25 C to + 70 C
Series: JSX
Travel: 2 mm
Type: Subminiature Slides
Voltage Rating DC: 5 V
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
