Comutatoare, întrerupătoare, basculanteMicrointrerupatoare cu rola, cu lamelaComutator cu came, 20A, 1-0-2, 3 nivele, 3 pozitii, LW26-20

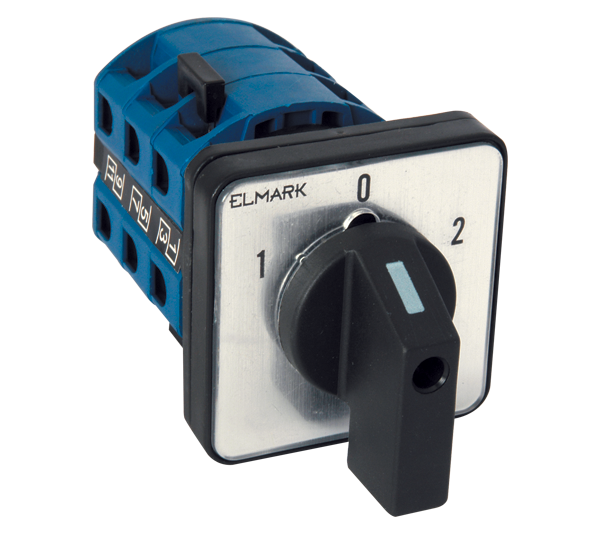

Comutatoare, întrerupătoare, basculanteMicrointrerupatoare cu rola, cu lamelaComutator cu came, 20A, 1-0-2, 3 nivele, 3 pozitii, LW26-20
DATE TEHNICE
Curent nominal 20 A
Grad de protectie IP42
Numar de nivele 3
Nivele
Technical characteristics:
- Power supply voltage: 230/400V, 50Hz
- Number of levels: 3
- Number of positions: 3
- Insulation voltage: 690V
- Impulse voltage withstand: 6000V
- Mechanical wear resistance: 3х105 commutation cycles
- Operating temperature: -10°С - +50°С
- Humidity: 35-85%RH
- Commutation capacity: 20А
- Resistant to UV rays plastic
- Cable connection: screw joining
- Tightening torque of the bolt: 1.33Nm
- Maximum section of the power supply conductors: 16.0 mm2
