Componente electronice activeDiode redresoare, schottky, putereDiode supresoare transilCM1231-02SO, ESD Suppressors, TVS Diode
Componente electronice activeDiode redresoare, schottky, putereDiode supresoare transilCM1231-02SO, ESD Suppressors, TVS Diode
Product Category: ESD Suppressors / TVS Diodes
Manufacturer: ON Semiconductor
RoHS: RoHS Compliant Details
Series: CM1231-02SO
Vesd - Voltage ESD Contact: 12 kV
Vesd - Voltage ESD Air Gap: -
Polarity: Bidirectional
Number of Channels: 2 Channel
Breakdown Voltage: 5.5 V
Clamping Voltage: 9 V
Cd - Diode Capacitance: 1.5 pF

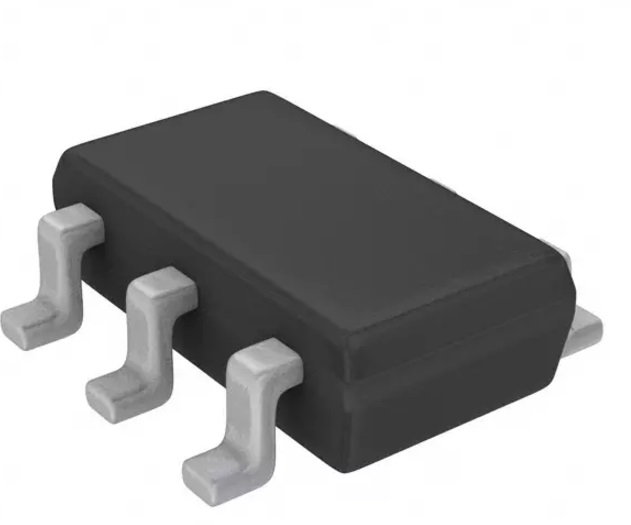

Package/Case: SOT-23-6
Pd - Power Dissipation: 225 mW
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Reel
Packaging: MouseReel
Packaging: Cut Tape
Brand: ON Semiconductor
Ipp - Peak Pulse Current: 1 A
Operating Temperature Range: - 40 C to + 85 C
Termination Style: SMD/SMT
Working Voltage: 5 V
