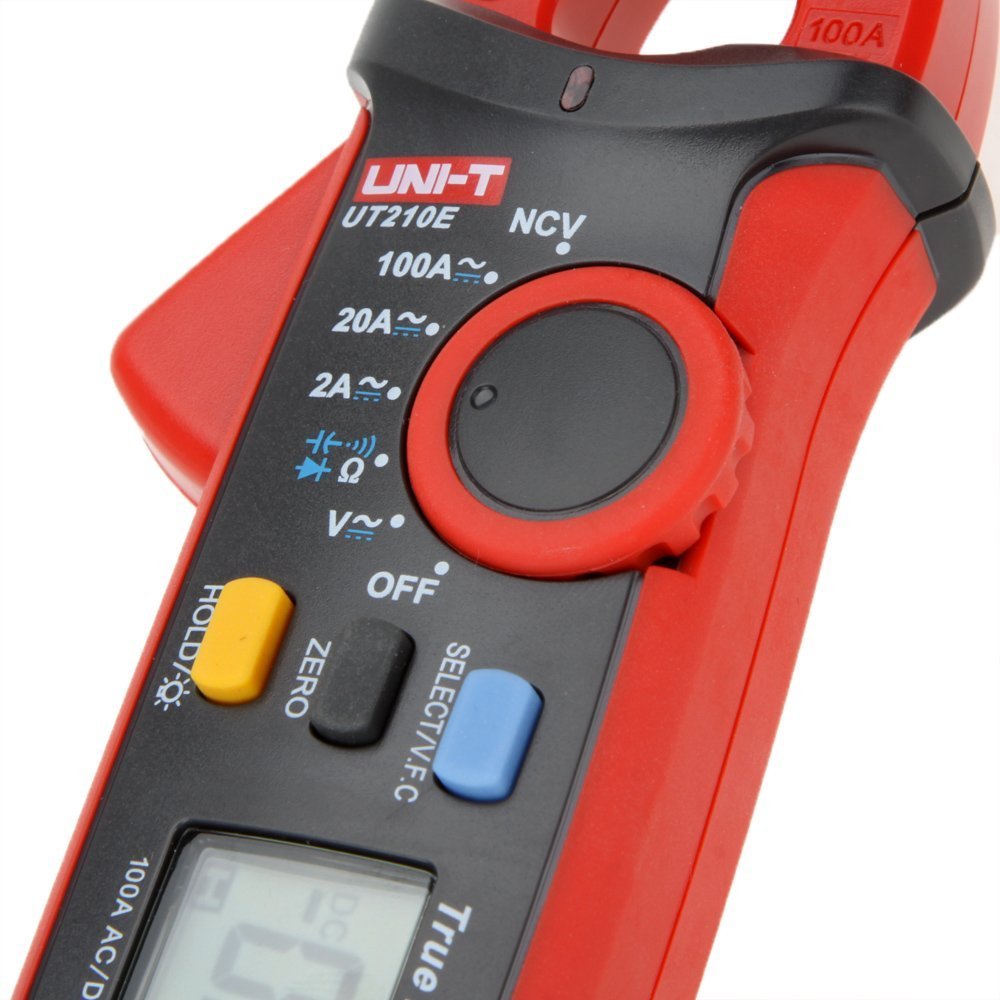

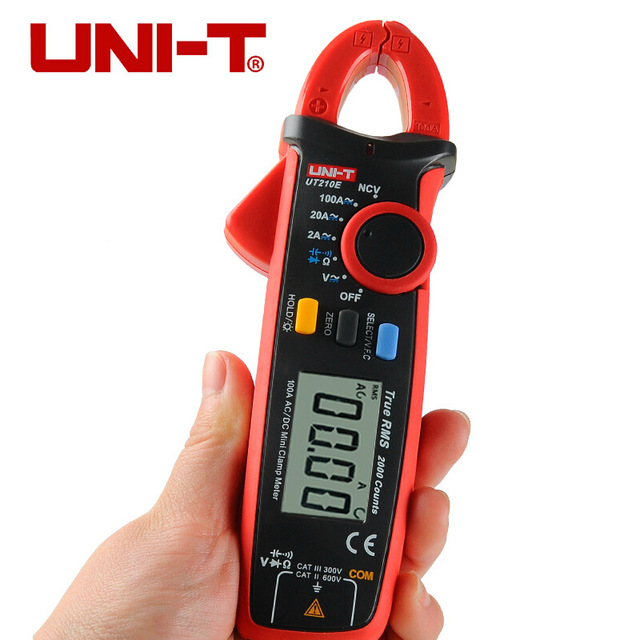

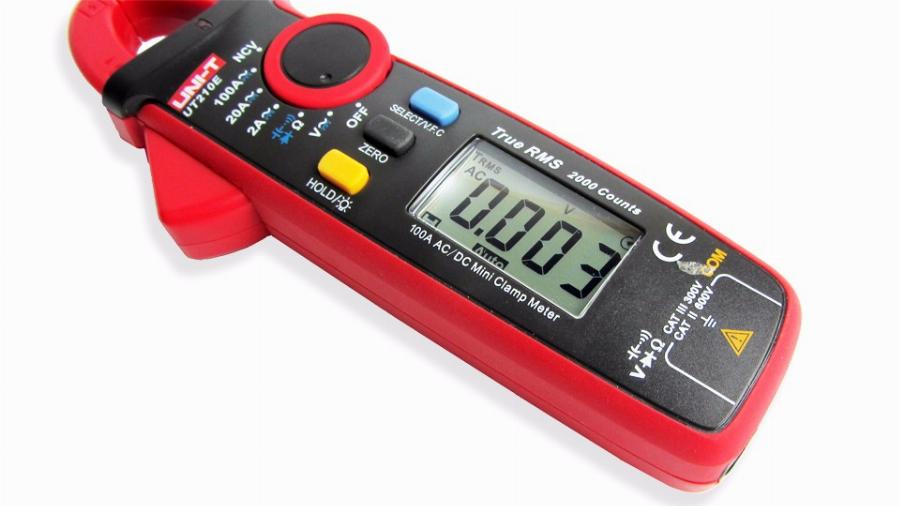

Aparate de măsurăAparate de masura curent AC/DC clesti curentCleste curent 2, 20, 100A, AC, DC, multimetru AC, DC, UT210E, UNIT
Aparate de măsurăAparate de masura curent AC/DC clesti curentCleste curent 2, 20, 100A, AC, DC, multimetru AC, DC, UT210E, UNIT
Masoara:
- tensiune DC: 200mV / 2V / 20V200V / 600V; ± (0,7% + 3)
- tensiune AC: 2V / 20V200V / 600V; ± (1% + 3)
- curent DC: 2A / 20A / 100A; ± (2% + 3)
- curent AC: 2A / 20A / 100A; ± (2,5% + 5)
- rezistența: 200 ohm / 2K / 20K / 200K / 2M / 20M; ± (1% + 2)
- capacitate: 2 nF / 20 nF / 200 nF / 2 μF / 20 μF / 200 μF / 2 mF / 20 mF; ± (4% + 5)
Scalare automată
RMS
Masurare diode: aprox. 3,0 V
Afișaj cu fundal iluminat
Oprire automată după aproximativ 15 minute
Masurare continuitate
Indicator pentru baterie descărcată
Impedanta de intrare: > = 10 Mohm
Alimentare: 2 x baterii 1.5V (AAA)
SPECIFICATION
Alternate Current
2A/20A/100A ±(2.5%+5)
Direct Current
2A/20A/100A ±(2.5%+3)
Alternate Volatge
2V/20V/200V/600V ±(1%+3)
Direct Voltage ±(0.7%+3)
Resistance
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(1%+2)
Capacity
2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF ±(4%+5)
FUNCTIONS
Display Count 2000
Auto Range
Jaw Opening 17mm
TRMS
Diode Test
NCV
Data Hold
MAX/MIN mode
Zero mode
Display Backlight
Auto Power Off
Continuity Buzzer
Low Battery Indication
Input Protection
Input Impedance DCV 10MΩ+
GENERAL CHARACTERISTICS
Power: 2x1,5V battery AAA
Weight: 170g
Size: 175x60x33mm
LCD Size: 39x26mm
VERIFICARE METROLOGICA LA CERERE
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
