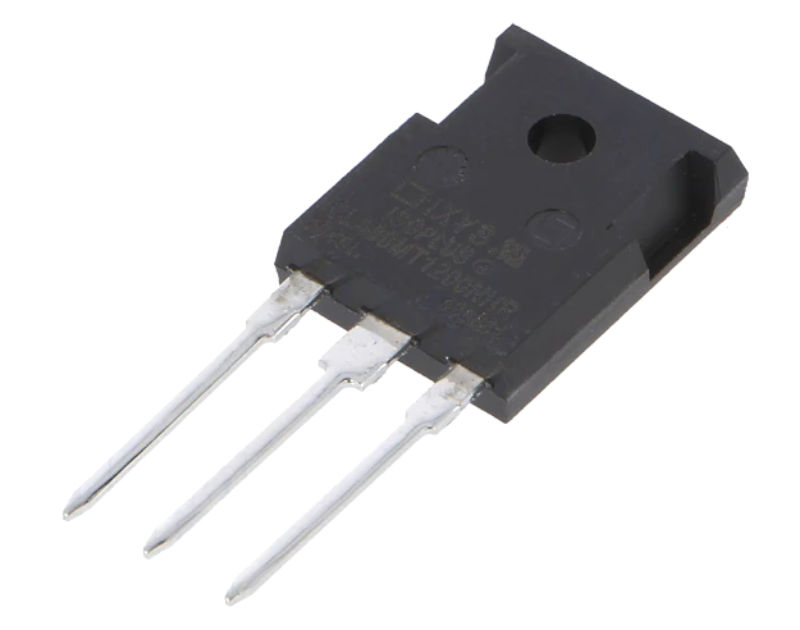

Componente electronice activeTiristoare, triace, diaceTriaceCLA80MT1200NHB, Triac, 1200V, 40A, 88A RMS, 70/90mA, ISO247, IXYS
Componente electronice activeTiristoare, triace, diaceTriaceCLA80MT1200NHB, Triac, 1200V, 40A, 88A RMS, 70/90mA, ISO247, IXYS
Producător : IXYS
Manufacturer: IXYS
Product Category: SCRs
RoHS: Details
Rated Repetitive Off-State Voltage VDRM: 1.2 kV
Off-State Leakage Current @ VDRM IDRM: 10 uA
On-State RMS Current - It RMS: 88 A
Vf - Forward Voltage: 1.3 V
Maximum Gate Peak Inverse Voltage: -
Gate Trigger Voltage - Vgt: 1.7 V
Gate Trigger Current - Igt: 70 mA
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: ISO-247-3
Packaging: Tube
Brand: IXYS
Breakover Voltage VBO: 560 A
Holding Current Ih Max: 70 mA
Non Repetitive On-State Current: 520 A
Off-State Capacitance CO: 25 pF
Product Type: SCRs
