Componente electronice pasiveCondensatori electrolitic, smd, ceramici, multistrat, low esr, bipolar, MKP, MKTCondensatori electroliticiCondensatori electrolitici cu AL radiali6800uF/10V, condensator electrolitic, 16x25mm, RM7.5, 2000h, Panasonic
Furnizor: PANASONIC

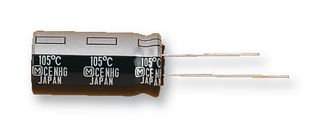

PANASONIC ECA1AHG682, CAPACITOR, 6800UF, 10V
RoHS : Da
Descriere
CAPACITOR, 6800UF, 10V
Capacitor Dielectric Type:Aluminium Electrolytic
Capacitance:6800µF
Capacitance Tolerance:± 20%
Voltage Rating:10V dc
Series:NHG
Height:25mm
Outside Diameter:16mm
Capacitor Case Style:Radial Leaded
Mounting Type:Through Hole
Lead Spacing:7.5mm
Operating Temperature Range:-55C to +105C
AC Ripple Current:1570mA
Application:High Temperature
Body Diameter:16mm
Case Style:Radial
External Length / Height:25mm
Lead Diameter:0.8mm
Max Operating Temperature:105C
Min Temperature Operating:-55C
Operating Lifetime:2000h
Ripple Current Frequency:120Hz
Ripple Current Temperature:105C
Terminal Type:Wire Ended
Tolerance, +:20%
Tolerance, -:20%
Voltage Rating DC:10V
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
