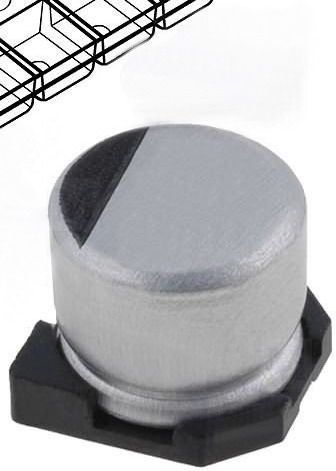

Componente electronice pasiveCondensatori electrolitic, smd, ceramici, multistrat, low esr, bipolar, MKP, MKTCondensatori electroliticiCondensatori electrolitici SMD470uF/10V, SMD, Condensator electrolitic, 10x10.2mm, PANASONIC
Furnizor: PANASONIC
EEEFC1A471P
RoHS : Da
Descriere
CAPACITOR, CASE G, 470UF, 10V
Capacitor Dielectric Type:Aluminium Electrolytic
Capacitance:470µF
Capacitance Tolerance:± 20%
Voltage Rating:10V DC
Series:FC
Life Time @ Temperature:1000 hours @ 105C
Height:10.2mm
Outer Diameter:10mm
Capacitor Case Style:G
No. of Pins:2
Mounting Type:SMD
Lead Spacing:4.6mm
Operating Temperature Range:-40C to +105C
AC Ripple Current:220mA
Applications:Low ESR
Body Diameter:10mm
External Length / Height:10.2mm
External Width:10.3mm
Impedance:0.4ohm
Impedance Frequency:100kHz
Impedance Temperature:20C
Lead Cross-section Width:0.9mm
Lead Length:3.5mm
Operating Lifetime:1000h
Operating Temperature Max:105C
Package / Case:G
Power Factor:0.19
Power Factor Frequency:120Hz
Power Factor Temperature:20C
Ripple Current Frequency:100kHz
Ripple Current Temperature:105C
Tape Width:16mm
Temperature Operating Min:-40C
Termination Type:SMD
Tolerance +:20%
Tolerance -:20%
