Componente electronice pasiveCondensatori electrolitic, smd, ceramici, multistrat, low esr, bipolar, MKP, MKTCondensatori film, plastic metalizat330nF/630V, condensator film, RM22.5, Panasonic
Componente electronice pasiveCondensatori electrolitic, smd, ceramici, multistrat, low esr, bipolar, MKP, MKTCondensatori film, plastic metalizat330nF/630V, condensator film, RM22.5, Panasonic
Furnizor: PANASONIC
ECQE6334JF
RoHS : Da
Descriere

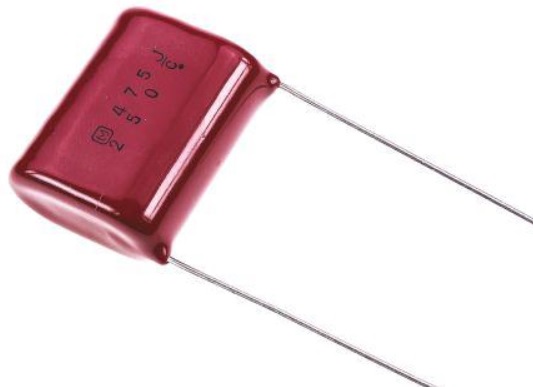

CAPACITOR, FILM, 630V, 0.33UF
Capacitor Dielectric Type:Metallised Plastic Film
Capacitance:0.33µF
Capacitance Tolerance:± 5%
Voltage Rating:630V
Series:ECQE
Capacitor Case Style:Radial
No. of Pins:2
Mounting Type:Through Hole
Lead Spacing:22.5mm
Operating Temperature Range:-40C to +105C
Applications:General Purpose
External Depth:26mm
External Length / Height:17mm
External Width:26mm
Lead Diameter:0.8mm
Lead Length:20mm
Package / Case:Radial
Termination Type:Radial Leaded
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
