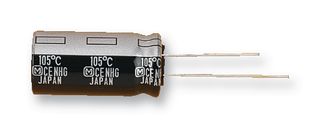

Componente electronice pasiveCondensatori electrolitic, smd, ceramici, multistrat, low esr, bipolar, MKP, MKTCondensatori electroliticiCondensatori electrolitici miniatura3300uF/10V, condensator miniatura, 12.5x20mm, PANASONIC
Furnizor: PANASONIC
ECA1AHG332
RoHS : Da
Descriere
CAPACITOR, 3300UF, 10V
Capacitor Dielectric Type:Aluminium Electrolytic
Capacitance:3300µF
Capacitance Tolerance:± 20%
Voltage Rating:10V DC
Series:NHG
Life Time @ Temperature:2000 hours @ 85C
Height:20mm
Outer Diameter:12.5mm
Capacitor Case Style:Radial Leaded
No. of Pins:2
Mounting Type:Through Hole
Lead Spacing:5mm
Operating Temperature Range:-55C to +105C
AC Ripple Current:1000mA
Applications:High Temperature
Body Diameter:12.5mm
External Length / Height:20mm
Lead Diameter:0.6mm
Operating Lifetime:2000h
Operating Temperature Max:105C
Package / Case:Radial
Ripple Current Frequency:120Hz
Ripple Current Temperature:105C
Temperature Operating Min:-55C
Terminal Type:Wire Ended
Tolerance +:20%
Tolerance -:20%
Voltage DC:10V
