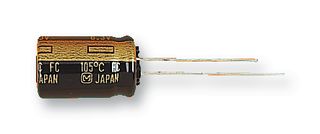

Componente electronice pasiveCondensatori electrolitic, smd, ceramici, multistrat, low esr, bipolar, MKP, MKTCondensatori electroliticiCondensatori electrolitici LOW ESR2700uF/6.3V electrolitic Low ESR, 16x15mm, RM7.5 PANASONIC
Furnizor: PANASONIC
EEUFC0J272S
RoHS : Da
Descriere
CAPACITOR, 2700UF, 6.3V
Capacitor Application:Low ESR
Capacitor Dielectric Type:Aluminium Electrolytic
Capacitance:2700µF
Capacitance Tolerance:± 20%
Voltage Rating:6.3VDC
Series:FC
Life Time @ Temperature:3000 hours @ 105C
Height:15mm
Capacitor Case Style:Radial
No. of Pins:2
Lead Spacing:7.5mm
AC Ripple Current:1690mA
Body Diameter:16mm
External Length / Height:15mm
Impedance:0.43ohm
Impedance Frequency:100kHz
Impedance Temperature:20C
Lead Diameter:0.8mm
Mounting Type:Through Hole
Operating Life Temperature:105C
Operating Lifetime:3000h
Operating Temperature Max:105C
Operating Temperature Range:-55C to +105C
Outer Diameter:16mm
Package / Case:Radial
Ripple Current Frequency:100kHz
Ripple Current Temperature:105C
Temperature Operating Min:-55C
Terminal Type:Wire Ended
Tolerance +:20%
Tolerance -:20%
Voltage DC:6.3V
