Componente electronice pasiveCondensatori electrolitic, smd, ceramici, multistrat, low esr, bipolar, MKP, MKTCondensatori SMD22uF/16V, SMD, Condensator electrolitic, 5x5.3mm, Panasonic

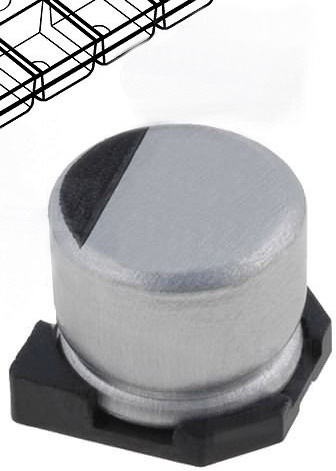

EEE1CA220SR - CAPACITOR, CASE C, 22UF, 16V
Furnizor:PANASONIC
RoHS : Da
Descriere
CAPACITOR, CASE C, 22UF, 16V
Capacitor Dielectric Type:Aluminium Electrolytic
Capacitance:22µF
Capacitance Tolerance:± 20%
Voltage Rating:16V dc
Series:VS
Life Time @ Temperature:2000h @ 85C
Height:5.4mm
Outside Diameter:5mm
Capacitor Case Style:C
Mounting Type:SMD
Lead Spacing:1.5mm
Operating Temperature Range:-40C to +85C
AC Ripple Current:39mA
Application:General Purpose
Body Diameter:5mm
Case Style:C
External Depth:5.3mm
External Length / Height:5.4mm
External Width:5.3mm
Lead Cross-section Width:0.65mm
Lead Length:2.2mm
Leakage Current:3.52µA
Max Operating Temperature:85C
Min Temperature Operating:-40C
Operating Life Temperature:85C
Operating Lifetime:2000h
Power Factor:0.16
Power Factor Frequency:120Hz
Ripple Current Frequency:120Hz
Ripple Current Temperature:85
