Furnizor: PANASONIC
ECQE6224JF
RoHS : Da
Descriere

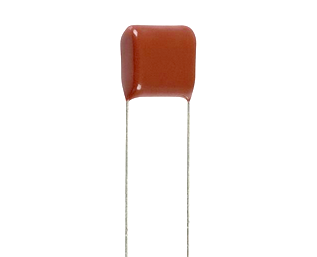

CAPACITOR, FILM, 630V, 0.22UF
Capacitor Dielectric Type:Metallised Plastic Film
Capacitance:0.22µF
Capacitance Tolerance:± 5%
Voltage Rating:630V
Series:ECQE
Capacitor Case Style:Radial
No. of Pins:2
Mounting Type:Through Hole
Lead Spacing:15mm
Operating Temperature Range:-40C to +105C
Applications:General Purpose
External Depth:18.5mm
External Length / Height:16.5mm
External Width:18.5mm
Lead Diameter:0.8mm
Lead Length:20mm
Package / Case:Radial
Termination Type:Radial Leaded
