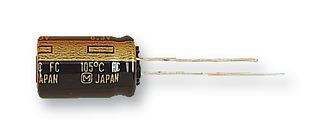

2200uF/16V, Condensator electrolitic, Low Esr, 105C, 12x25mm, RM5, PANASONIC

Denumire Produs: EEUFC1C222, PANASONIC

COD: 71175

Preț: 4,40 RON

(Prețul include TVA)

In stoc

Adaugati la lista de favorite

Cantitate:

Discounturile noastre de cantitate:

Cantitate	5+
Preț	3,90 RON

Cantitatea minimă pentru "2200uF/16V, Condensator electrolitic, Low Esr, 105C, 12x25mm, RM5, PANASONIC" este 1.

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Furnizor: PANASONIC

EEUFC1C222

Descriere
CAPACITOR, 2200UF, 16V
Capacitor Dielectric Type:Aluminium Electrolytic
Capacitance:2200µF
Capacitance Tolerance:± 20%
Voltage Rating:16V DC
Series:FC
Life Time @ Temperature:3000 hours @ 105C
Height:25mm
Outer Diameter:12.5mm
Capacitor Case Style:Radial Leaded
No. of Pins:2
Mounting Type:Through Hole
Lead Spacing:5mm
Operating Temperature Range:-55C to +105C
AC Ripple Current:1945mA
Applications:Low ESR
Body Diameter:12.5mm
External Length / Height:25mm
Impedance:0.03ohm
Impedance Frequency:100kHz
Impedance Temperature:20C
Lead Diameter:0.6mm
Operating Life Temperature:105C
Operating Lifetime:3000h
Operating Temperature Max:105C
Package / Case:Radial
Ripple Current Frequency:100kHz
Ripple Current Temperature:105
