Furnizor: 12X7.5MM, PANASONIC
ECQE6103JF
RoHS : Da
Descriere

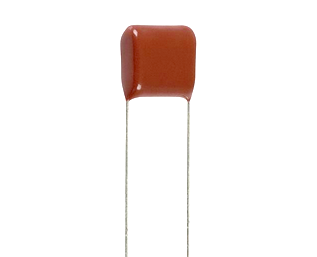

CAPACITOR, FILM, 630V, 10NF
Capacitor Dielectric Type:Metallised Plastic Film
Capacitance:10nF
Capacitance Tolerance:± 5%
Voltage Rating:630V
Series:ECQE
Capacitor Case Style:Radial
No. of Pins:2
Mounting Type:Through Hole
Lead Spacing:10mm
Operating Temperature Range:-40C to +105C
Applications:General Purpose
External Depth:12mm
External Length / Height:7.5mm
External Width:12mm
Lead Diameter:0.6mm
Lead Length:20mm
Package / Case:Radial
Termination Type:Radial Leaded
