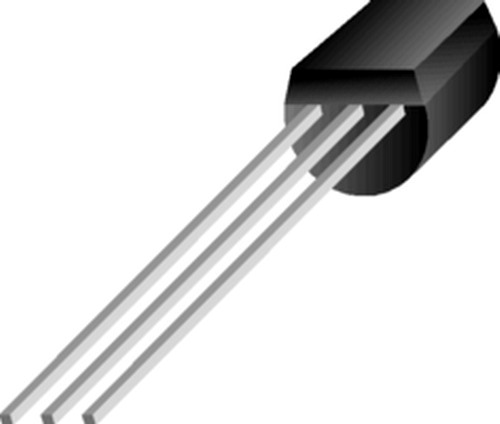

BS170 Tranzistor N-MOSFET 60V 0,3A 0,8W 5R TO92

Echivalent:  MMBR170

  N CHANNEL MOSFET, 500MA, 60V, TO-92

• Transistor Polarity: N Channel
• Continuous Drain Current Id: 500mA
• Drain Source Voltage Vds: 60V
• On Resistance Rds(on): 1.2ohm
• Rds(on) Test Voltage Vgs: 10V
• Threshold Voltage Vgs: 2.1V
• Power Dissipation Pd: 830mW
• Transistor Case Style: TO-92
• No. of Pins: 3
• Operating Temperature Max: 150°C
• MSL: MSL 1 - Unlimited
• SVHC: No SVHC (16-Dec-2013)
• Current Id Max: 500mA
• Current Temperature: 25°C
• Device Marking: BS170
• Full Power Rating Temperature: 25°C
• Lead Spacing: 2.54mm
• No. of Transistors: 1
• Operating Temperature Min: -55°C
• Operating Temperature Range: -55°C to +150°C
• Pulse Current Idm: 1.2A
• Termination Type: Through Hole
• Voltage Vds Typ: 60V
• Voltage Vgs Max: 3V
• Voltage Vgs Rds on Measurement: 2.1V
• Voltage Vgs th Max: 3V
