Pagină de start>Componente electronice active>Tranzistoare>Tranzistoare bipolare>BFU520XAR, RF Transistor, NPN, 12 V, 10.5 GHz, 450 mW, NXP

Mareste

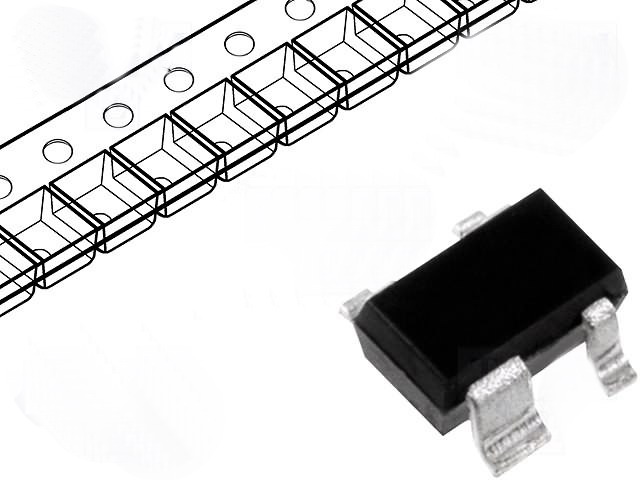

BFU520XAR, RF Transistor, NPN, 12 V, 10.5 GHz, 450 mW, NXP

Denumire Produs: BFU520XAR, NXP

COD: 92505

Preț orientativ: 9,36 RON

Manufacturer: NXP
Product Category: RF Bipolar Transistors
RoHS: Details
Transistor Type: Bipolar Wideband
Technology: Si
Transistor Polarity: NPN
Operating Frequency: 10.5 GHzMHz
DC Collector/Base Gain hFE Min: 60
Collector- Emitter Voltage VCEO Max: 16 V
Emitter- Base Voltage VEBO: 2 V
Continuous Collector Current: 5 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 150 C
Configuration: Single
Mounting Style: SMD/SMT
Package/Case: SOT143B-4
Packaging: Cut Tape
Packaging: Reel
Collector- Base Voltage VCBO: 24 V
DC Current Gain hFE Max: 200
Operating Temperature Range: - 40 C to + 150 C
Type: Wideband RF Transistor
Brand: NXP Semiconductors
Gain Bandwidth Product fT: 10.5 GHz
Maximum DC Collector Current: 50 mA
Pd - Power Dissipation: 450 mW
Product Type: RF Bipolar Transistors


ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
