Componente electronice activeTranzistoareTranzistoare bipolareBF259, SI-N, 300V, 0.1A, CDIL
BF259
RoHS : Da
Descriere

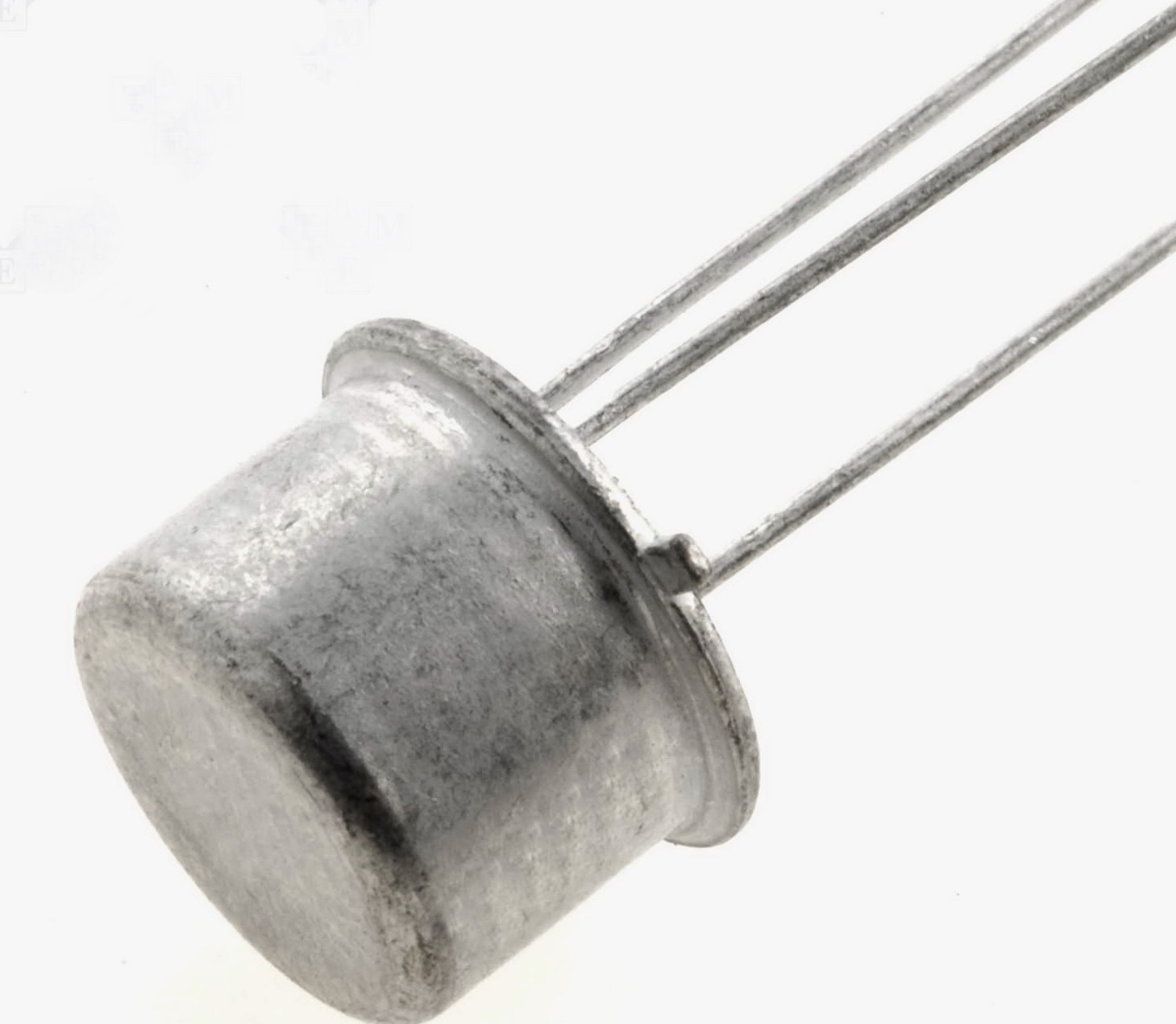

TRANSISTOR, NPN, TO-39
Transistor Polarity:NPN
Collector Emitter Voltage V(br)ceo:300V
Power Dissipation Pd:1W
DC Collector Current:100mA
Operating Temperature Range:-65C to +200C
Transistor Case Style:TO-39
No. of Pins:3
Collector Emitter Voltage Vces:1V
Continuous Collector Current Ic Max:100mA
Current Ic @ Vce Sat:30mA
Current Ic Continuous a Max:100mA
Current Ic hFE:30mA
DC Current Gain hFE:25
Full Power Rating Temperature:25C
Gain Bandwidth ft Min:25MHz
Gain Bandwidth ft Typ:90MHz
Hfe Min:25
No. of Transistors:1
Package / Case:TO-39
Power Dissipation Pd:1W
Power Dissipation Ptot Max:500mW
Termination Type:Through Hole
Transistor Type:
Voltage Vcbo:300V
Inlocuire pentru: BF179B, BF257, BF258
