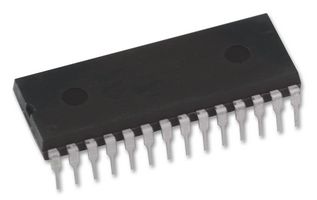

Componente electronice activeMicrocontrolere Microchip, AtmelAtmel Microcontrolere ATMEGA88PA-PU, 8 Bit MCU, AVR ATmega Family ATmega20 MHz, 8 KB, 28 Pins, DIP
ATMEGA88-20AU Circ.integrat AVR ISP-MC 2,7-5,5V 8K Flash 20MHz TQFP32 RoHS
Producator: ATMEL
Descriere
MCU, 8BIT, AVR, 8K FLASH, 32TQFP
Core Size:8bit
No. of I/O's:23
Program Memory Size:8KB
EEPROM Memory Size:512Byte
RAM Memory Size:1KB
Processor Speed:20MHz
Oscillator Type:Internal, External
No. of Timers:3
Peripherals:ADC, Comparator, RTC, Timer, PWM
Interface:I2C, SPI, USART
No. of PWM Channels:6
Digital IC Case Style:TQFP
Supply Voltage Range:1.8V to 5.5V
Operating Temperature Range:-40C to +85C
No. of Pins:32
Case Style:TQFP
Clock Frequency:20MHz
Flash Memory Size:8KB
Interface Type:I2C, SPI, USART
Logic Function Number:88
Max Supply Voltage:5.5V
Min Supply Voltage:1.8V
No. of ADC Inputs:8
No. of I/O Lines:23
Series:ATMEGA
Termination Type:SMD
