Componente electronice activeMicrocontrolere Microchip, AtmelAtmel Microcontrolere ATMEGA88-20AU, 8 Bit MCU, Low Power, High Performance, AVR, TQPF32

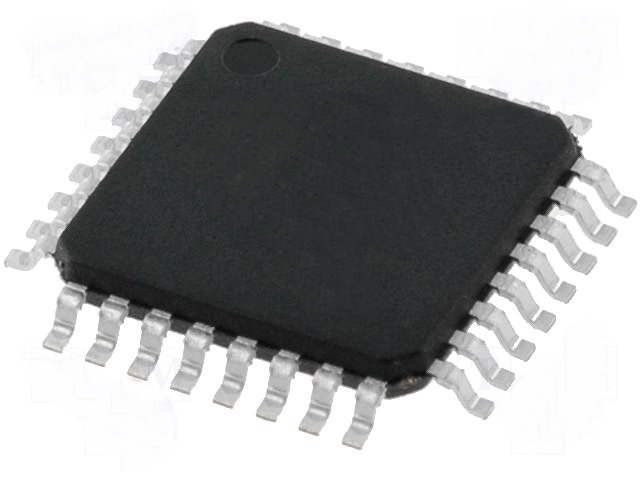

ATMEGA88-20AU Circ.integrat AVR ISP-MC 2,7-5,5V 8K Flash 20MHz TQFP32 RoHS
Producator: ATMEL
Descriere
8BIT 8K FLASH MCU, SMD, TQFP32
Base Number:88
Core Size:8bit
No. of I/O's:23
Program Memory Size:8KB
EEPROM Memory Size:512Byte
RAM Memory Size:1KB
Processor Speed:20MHz
Oscillator Type:Internal, External
No. of Timers:3
Peripherals:ADC, Comparator, Timer, PWM
Interface:SPI, USART
No. of PWM Channels:6
Digital IC Case Style:TQFP
Supply Voltage Range:1.8V to 5.5V
Operating Temperature Range:-40C to +85C
No. of Pins:32
Max Operating Temperature:85C
Min Temperature Operating:-40C
Case Style:TQFP
Clock Frequency:20MHz
Flash Memory Size:8KB
IC Generic Number:88
Interface Type:I2C, SPI, USART
Logic Function Number:88
Max Supply Voltage:5.5V
Memory Size:8 K
Memory Type:FLASH
Microprocessor/Controller Features:High Performance, Low Power AVR® 8-Bit Microcontroller, Advanced RISC Architecture, 4/8/16K Bytes of In-System Self-Programmable Flash, Optional Boot Code Section with Independent Lock Bits, 256/512/512 Bytes EEPROM, 512/1K/1K Byte Internal SRAM
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
