ATMEGA8-16AU, microcontroler AVR; EEPROM: 512B; SRAM: 1kB; Flash: 8kB;

Furnizor: ATMEL

COD  Furnizor: ATMEGA8-16AU

RoHS :  Da
Descriere
IC, SM 8-BIT 8K FLASH MCU,WAFFLE125
Base Number:8
Core Size:8bit
No. of I/O's:23
Program Memory Size:8KB
EEPROM Memory Size:512Byte
RAM Memory Size:1024Byte
Processor Speed:16MHz
Oscillator Type:Internal, External
No. of Timers:3
Peripherals:ADC, Timer, PWM
Interface:SPI, USART
No. of PWM Channels:3

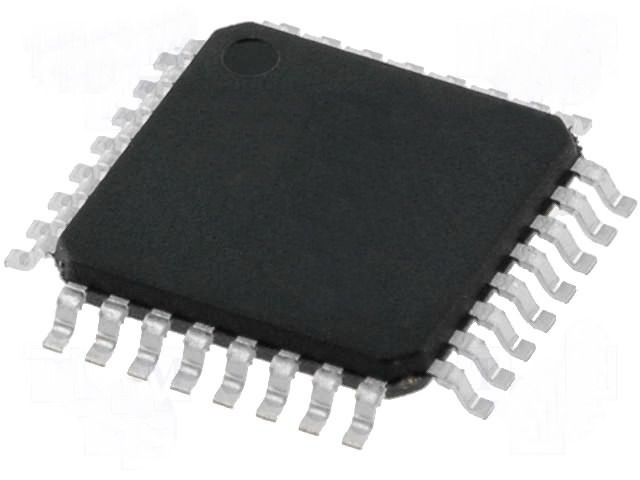

Digital IC Case Style:TQFP
Supply Voltage Range:4.5V to 5.5V
Operating Temperature Range:-40C to +85C
No. of Pins:32
Max Operating Temperature:85C
Min Temperature Operating:-40C
Case Style:TQFP
Clock Frequency:16MHz
Flash Memory Size:8KB
IC Generic Number:8
Interface Type:SPI, USART
Logic Function Number:8
Max Supply Voltage:5.5V
Memory Size:8 K
Memory Type:Flash PEROM
Microprocessor/Controller Features:ISP, SPI, WDT
Min Supply Voltage:4.5V
No. of ADC Inputs:8
No. of Bits:8
No. of External Interrupts:2
No. of I/O Lines:23
Number of bits in ADC:10
Packaging Type:Waffle Tray
Series:ATMEGA
Termination Type:SMD
