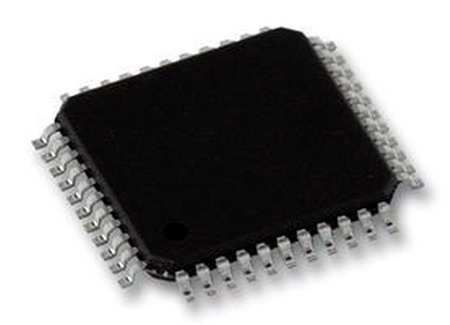

ATMEGA16-16AU Integrated circuit AVR ISP-MC 2,7-5,5V 16K-Flash TQFP44 RoHS
Producator: ATMEL Simbol original: ATMEGA16-16AU
Product Category: 8-bit Microcontrollers - MCU
Manufacturer: Microchip
RoHS: RoHS Compliant Details
Mounting Style: SMD/SMT
Package/Case: TQFP-44
Core: AVR
Data Bus Width: 8 bit
Maximum Clock Frequency: 16 MHz
Program Memory Size: 16 kB
Data RAM Size: 1 kB
ADC Resolution: 10 bit
Operating Supply Voltage: 4.5 V to 5.5 V
Maximum Operating Temperature: + 85 C
Processor Series: megaAVR
Packaging: Tray
Analogue Supply Voltage: 2.7 V to 5.5 V
Brand: Microchip Technology / Atmel
DAC Resolution: -
Data RAM Type: SRAM
Data ROM Size: 512 B
Data ROM Type: EEPROM
Height: 1 mm
I/O Voltage: 2.7 V to 5.5 V
Interface Type: I2C, JTAG, SPI, USART
Length: 10 mm
Minimum Operating Temperature: - 40 C
Number of ADC Channels: 8 Channel
Number of I/Os: 32 I/O
Number of Timers/Counters: 3 Timer
Product: MCU
Program Memory Type: Flash
Series: ATMEGA 16
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Tradename: ATMEGA
Watchdog Timers: Watchdog Timer
